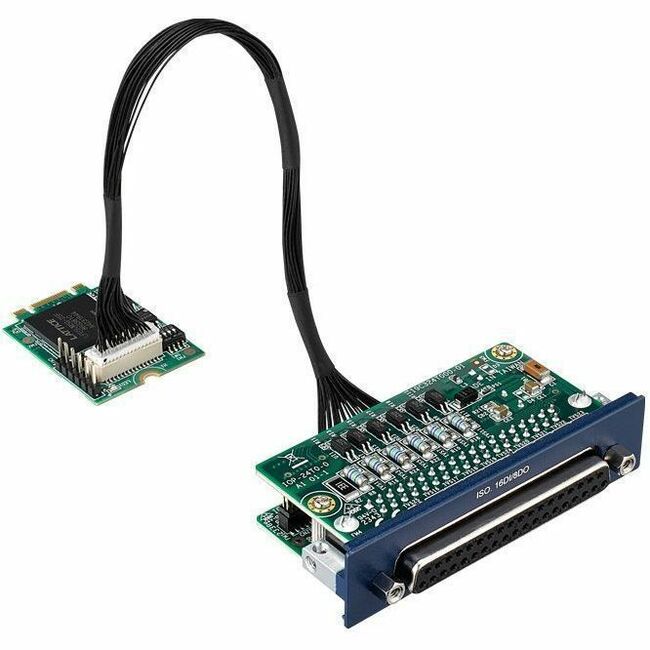

Advantech 24-Channel Isolated Digital I/O, M.2 B+M key (3042, PCIe*1), DB37
Manufacturer: Advantech Co., Ltd
Mfr. Part: PCM-37D24DI-AE
About This Product
Overview
The PCM-37D24DI is a DIO (Digital Input/Output) port that allows devices to send and receive binary signals for communication and control in various applications. It enables effective control and communication and is widely used in automation, data acquisition, and control systems to efficiently manage and monitor external devices. This is a flexible design that enables customers to customize their features with iDoor Technology
- ƒ Meets Advantech iDoor technology standard
- ƒ M.2 2242 B+M Key compliant (PCI Express)
- ƒ Supports wide-input/output voltage (10-30 VDC/5-30 VDC)
- ƒ High over-voltage-protection (70 VDC) and voltage isolation (2,500 VDC)
- ƒ Easy configuration & efficient programming by Advantech DAQNavi
- ƒ I/O address automatically assigned by PCIe plug & play
- ƒ Keeps the output settings and values after system hot reset
- ƒ Compatible with embedded automation PC UNO-1/2/3/4 series
- ƒ Compliant with FCC/CE Class A Certification
- ƒ Operation temperature 0~60 degree support
Quick Specifications
- Product Model
- PCM-37D24DI
- Product Type
- Digital I/O Module
- Output Voltage
- 30 V DC
- Application/Usage
- Automation
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
