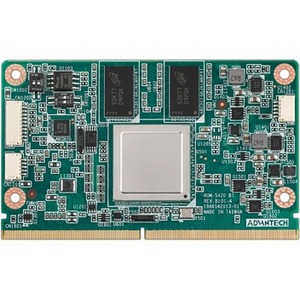

Advantech ROM-5420 B1 Single Board Computer
Cortex A9 - Quad-core (4 Core) - 800 MHz - 2 GB - DDR3 SDRAM - 8 GB Flash Memory - HDMI - 2 x Number of USB Ports - 2 x Number of USB 2.0 Ports - Network (RJ-45)
About This Product
Overview
ROM-5420 series SMARC module integrated NXP i.MX6 Cortex-A9 SoC. The powerful i.MX6 SoC supports 2D/3D graphics accelerators, full HD 1080p encode/decode hardware engine and up to 4 independent display outputs. ROM-5420 supports a unique feature of security protection to protect users image from illegal copy. The camera input and power input 3V~5.25V make it easier to design a portable application. ROM-5420 SMARC module also supports Advantech evaluation carrier board ROM-DB5900 for easy integration and hardware design reference. The Linux and Android BSP, test utilities and reference codes not only help you develop a new application quickly and also speed up your device integration.
- Freescale ARM Cortex™-A9 i.MX6 Quad 800 MHz high performance processor
- Onboard DDR3 memory 2 GB
- Parallel RGB, HDMI, 24bit LVDS
- Supports 4GB eMMC flash, 1 SD/MMC, 1 SATA
- 2 CAN, 4 UART, 5 I2C, 12 GPIO, 1 PCIe, 1 camera input and 1 Gigabyte LAN
- Supports OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators
- Supports full HD hardware encode/decode engine
- Optional thermal solution
Quick Specifications
- Product Model
- ROM-5420 B1
- Product Type
- Single Board Computer
- Processor Type
- Cortex A9
- Processor Core
- Quad-core (4 Core)
- Processor Speed
- 800 MHz
- Standard Memory
- 2 GB
- Memory Technology
- DDR3 SDRAM
- Flash Memory Capacity
- 8 GB
