Advantech SFP+ Module
For Data Networking, Optical Network - 1 x Duplex LC 10GBase-LR Network - Optical Fiber - 1310 nm Wavelength - Single-mode - 10 Gigabit Ethernet - 10GBase-LR - 10 Gbit/s - 10 km Maximum Distance - Hot-pluggable
About This Product
Overview
Introduction

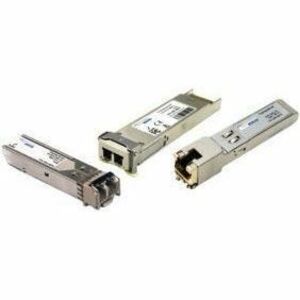

Advantech's small form-factor pluggable (SFP) transceiver family is available with a variety of types of copper SFP and fiber SFPs, SFP+. This transceiver module is compliant with the small form-factor pluggable (SFP) multi-source agreement (MSA). They are versatile and widely used because of their hot-pluggable feature.
Advantech's SFPs provide robust industrial performance with an extended operating temperature range. Through real-time monitoring, the DDM (digital diagnostic monitoring) functionality provides users critical information such as receive optical power, transmitted optical power, laser bias current, input voltage, and temperature in the network. This approach enables better fault isolation and error detection.
- Industrial standard small form-factor pluggable (SFP) package
- Wide specifications and fiber types available
- Provides digital diagnostics monitoring (DDM) functionality
- Comes with metal enclosure for EMI
- The Class 1 laser product complies with EN 60825-1
- Supports plug-n-play operation
Quick Specifications
- Product Type
- SFP+
- Application/Usage
- Data Networking Optical Network
- Features
- Digital Diagnostics Monitoring Interface (DDMI)
- Total Number of Ports
- 1
- Connector Type
- LC Duplex
- Interfaces/Ports Details
- 1 x Duplex LC 10GBase-LR Network
- Media Type Supported
- Optical Fiber
- Fiber Optic Cable Wavelength
- 1310 nm
