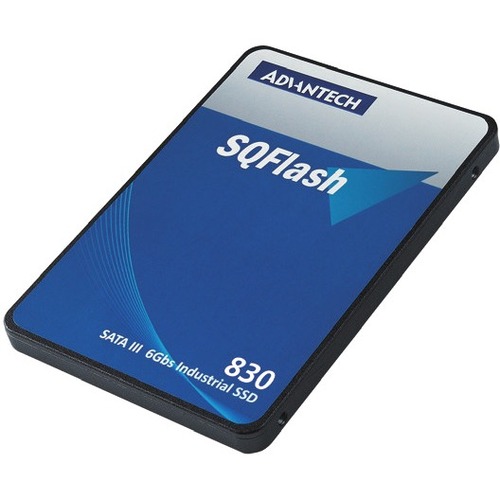

B+B SmartWorx SQFlash 830 SQF-S25 512 GB Solid State Drive - 2.5" Internal - SATA (SATA/600)
Manufacturer: Advantech Co., Ltd
Mfr. Part: SQF-S25M8-512G-SAE
540 MB/s Maximum Read Transfer Rate
About This Product
Overview
Advantech SQFlash 830 series 2.5" SATA-SSD (SQF-S25 830) delivers all the advantages of Flash Disk technology with the Serial ATA III (6.0Gb) interface, fully compliant with standard 2.5-inch form factor. The SATA SSD is based on a standard SATA 7-pin interface for data segment and 15-pin for power segment, designed to operate at a maximum operating frequency of 300MHz with 30MHz external crystal. Its capacity could provide a wide range up to 2TB. Moreover, it can reach up to 550MB/s read and 530MB/s write high performance based on Toggle 2.0 MLC flash (with 512MB DDR enabled and measured by CrystalDiskMark v3.0).
- Compliant with SATA III and SATA v3.0 standard
- Supports 120 bit ECC correct per 2K Byte data
- Supports Fragment Writing and Flush Manager
- Optional support for AES and voltage stabilizer
- Shock resistance, anti-vibration and low power consumption
- GUI management tool & software API package
Quick Specifications
- Product Line
- SQFlash
- Product Series
- 830
- Product Model
- SQF-S25
- Product Type
- Solid State Drive
- Storage Capacity
- 512 GB
- Maximum Read Transfer Rate
- 540 MB/s
- Maximum Write Transfer Rate
- 520 MB/s
- Wireless LAN
- No
