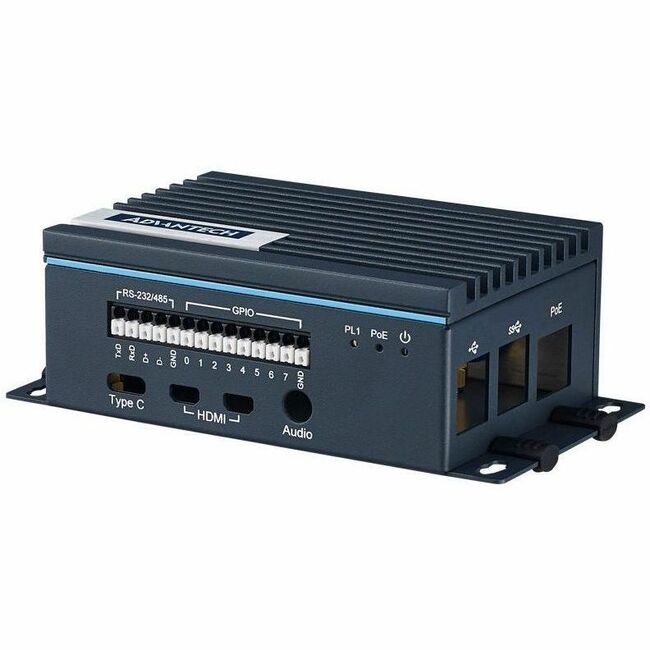

Advantech Industrial Raspberry Pi 4 Gateway Kit with POE function
Manufacturer: Advantech Co., Ltd
Mfr. Part: UNO-220-P4N2AE
About This Product
Overview
UNO-220 is designed for customers using Raspberry Pi 4 (RPi 4) single-board computers (SBCs) in IoT applications. Featuring a system-image OS equipped micro SD card, an RPi 4 HAT I/O board, additional RS-232/485 GPIOs, and an RTC battery backup for precise time keeping; the UNO-220 industrial-grade chassis transforms RPi 4 into a more ruggedized gateway ideal for rapid prototyping in shop floor environment.
- Protect your Raspberry Pi device from dust and temperature extremes.
- Industrial-grade gateway kit provides Raspberry Pi-ready solutions for rapid prototyping
- Industrial grade I/O board for RS-232/485 and GPIO extension
- Integrated with PoE funciton allows users to power Raspberry Pi4 via an Ethernet cable
- Battery-backed RTC enabling fail-safe time keeping
- Built-in TPM function provides robust protection for critical data
- Included OS enables RPi identification of UNO-220, and automatically configures GPIOs and drivers for the board
- Supports wall-mount and DIN rail installation for industrial applications
- LED indicator for more easier mentanence
Quick Specifications
- Product Type
- IoT Gateway Kit
- Ethernet Technology
- Gigabit Ethernet
- Dimensions
- Dimensions (W x D x H) 100 x 70 x 40 mm
- Mount Surface
- Wall
- Weight (Approximate)
- Weight (Net): 0.5 kg (1.10 lbs)
- Form Factor
- Wall Mountable Railing Stand Mount
- Ingress Protection Rating
- IP40
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
