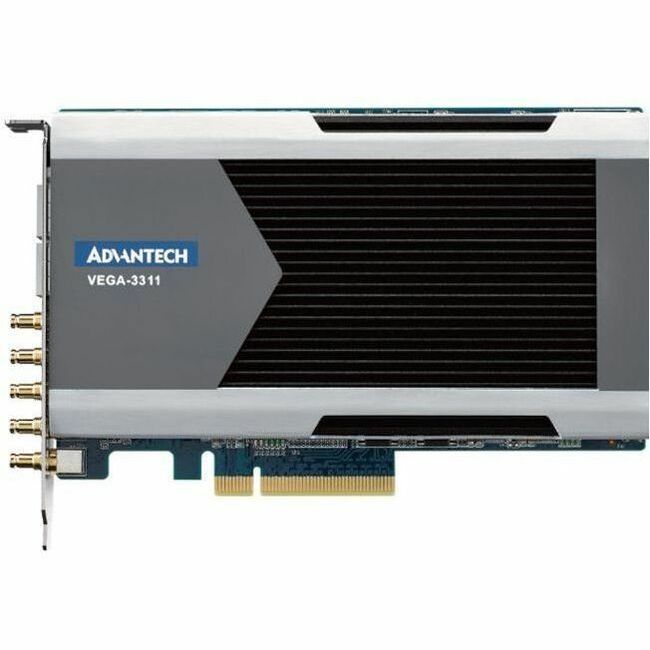

Advantech 4K HEVC/AVC Broadcast Video Encoding Card
Functions: Video Encoding, Video Decoding - 2160p, 1080p, 720p - 3840 x 2160 - 60 fps - 4K, Full HD, HD - NV12, HEVC, AVC - SDI - Network (RJ-45) - PC - Windows Server 2012, Windows Server 2012 R2 x64, Windows Server 2008 R2 x64 Supported Operating System
About This Product
Overview
VEGA-3311 enables HEVC, AVC, real-time 1-ch 4K UltraHD (2160p60) and 4-ch FHD (1080p60) encode. It is particularly relevant for 4K UltraHD transmission which requires a much higher stream capacity
VEGA-3311 is tailored for professional media processing and are capable of performing professional grade 4Kp60 Main10 profile HEVC encoding at less than 35W power consumption. The VEGA-3311 adapter additionally features 4K video capture over built-in 4-ch SDI-3G or 1-ch SDI-12G video inputs for acquisition-based encoding and 4-ch SDI-3G video outputs for acquisition-based decoding in contribution workflows. VEGA-3311 can also support low latency transmission of uncompressed or lightly compressed video over standard IP networks according to industry agreed standards. This card feature a simple-to-use API and example code for FFmpeg and GStreamer multimedia frameworks to streamline product development and their integration into existing applications.
- 1-ch 4Kp60 or 4-ch 1080p60 real-time 4:2:2 10-bit HEVC, AVC encode
- AIMS roadmap support including SMPTE 2022 or SMPTE 2110 & VSF TR-03/-04 w/ AES67 audio & SMPTE 2059 sync
- 4K video capture over built-in, 4-ch SDI-3G or 1-ch SDI-12G (SDI only, VEGA-3311-S)
- 4K video capture over built-in, 4-ch SDI-3G or 1-ch SDI-12G and 2x 10GbE (VEGA-3311-I)
- ƒ Simple-to-use API and example code for FFmpeg and GStreamer multimedia frameworks
Quick Specifications
- Product Model
- VEGA-3311
- Product Type
- Video Encoder/Decoder
- Functions
- Video Encoding Video Decoding
- Maximum Resolution
- 3840 x 2160
- Screen Mode Supported
- 4K Full HD HD
- Maximum Frame Rate
- 60 fps
- Video Formats
- NV12 HEVC AVC
- Platform Supported
- PC
