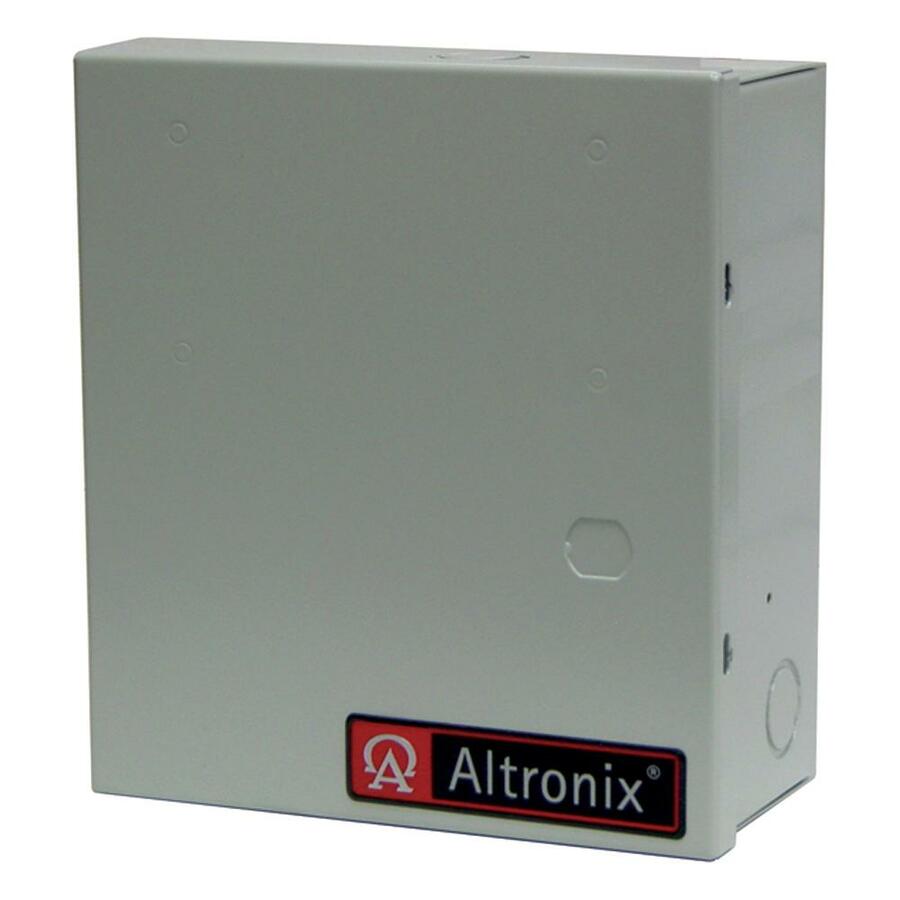

Altronix AL175UL Proprietary Power Supply
Manufacturer: Altronix Corporation
Mfr. Part: AL175UL
Wall Mount, Enclosure - 120 V AC Input - 12 V DC, 24 V DC Output - 2 +12V Rails
About This Product
Overview
AL175UL is a power limited power supply/chargers that will convert 115VAC / 60Hz input, into two individually PTC protected 12VDC or 24VDC output, (see specifications). They are intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels. It must be installed in accordance with National and Local Electrical Codes and Regulations.
- 2 Output Power Supply/Charger w/Fire Alarm Disconnect.
- 12VDC or 24VDC @ 1.75A, Class 2 power limited outputs.
- UL and cUL listed.
Quick Specifications
- Product Model
- AL175UL
- Packaged Quantity
- 1
- Product Type
- Proprietary Power Supply
- Protection Type
- Short Circuit Thermal Overload
- Input Voltage
- 120 V AC
- Number of +12V Rails
- 2
- Output Voltage
- 12 V DC 24 V DC
- Output Voltage Detail
- 12 V DC @ 1.75 A 24 V DC @ 1.75 A
