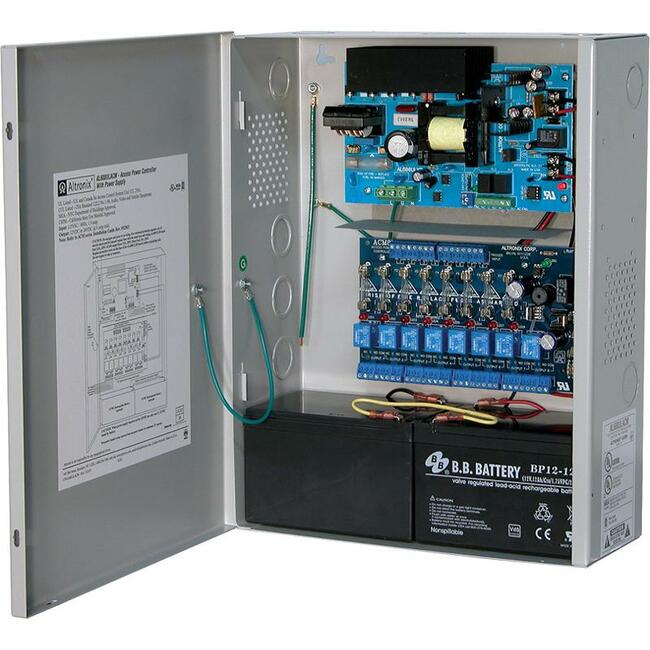

Altronix ACM AL600ULACM Proprietary Power Supply
Manufacturer: Altronix Corporation
Mfr. Part: AL600ULACM
Internal - 120 V AC Input - 12 V DC, 24 V DC Output
About This Product
Overview
Model AL600ULACM converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC non power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 6 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL600ULACMCB is a PTC protected version of this unit.
- Access Power Controller with power supply.
- 8 fused power limited outputs provide 12VDC or 24VDC @ 6A.
- Outputs are individually selectable for Fail-Safe or Fail-Secure operation or as dry form "C" contacts.
- Fire alarm disconnect is selectable by output.
- UL and cUL listed.
Quick Specifications
- Product Series
- ACM
- Product Model
- AL600ULACM
- Packaged Quantity
- 1
- Product Type
- Proprietary Power Supply
- Protection Type
- Short Circuit Thermal Overload
- Input Voltage
- 120 V AC
- Output Voltage
- 12 V DC 24 V DC
- Output Voltage Detail
- 12 V DC @ 6 A 24 V DC @ 6 A
