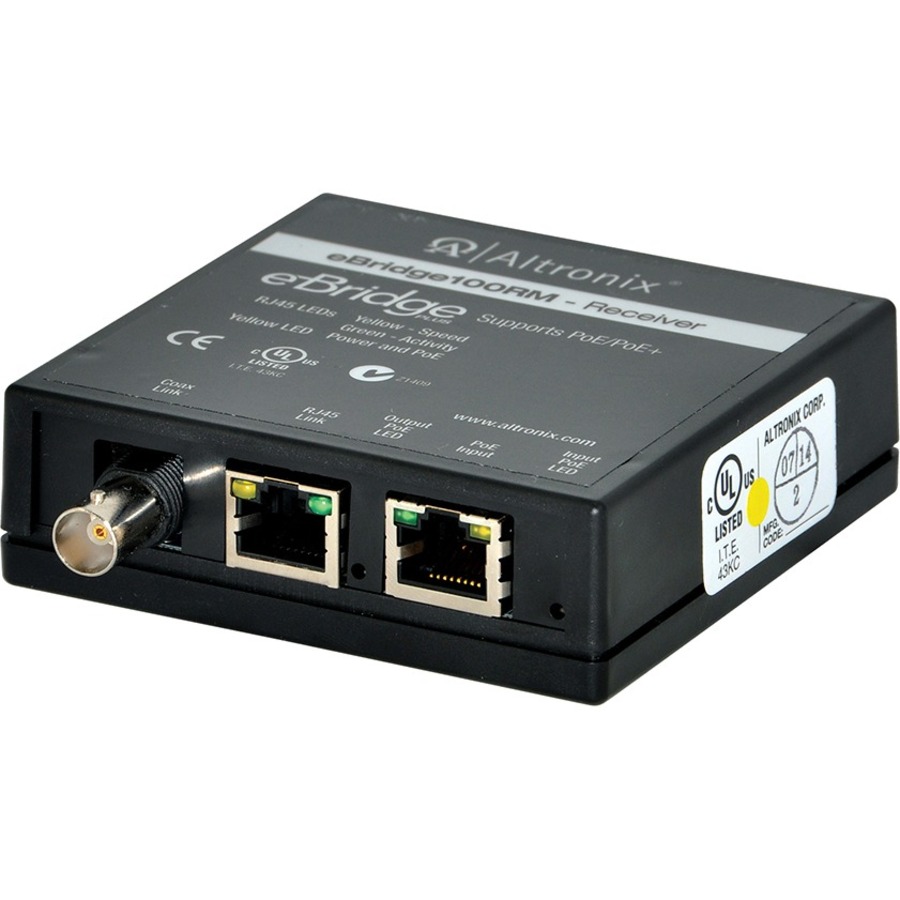

Altronix IP and PoE+ over Coax or Extended Ethernet Cable Receiver
Manufacturer: Altronix Corporation
Mfr. Part: EBRIDGE100RM
Network (RJ-45) - 2x PoE+ (RJ-45) Ports - Fast Ethernet - 10/100Base-TX - 0.50 km - PoE+
About This Product
Overview
eBridge100RM is a versatile dual solution Ethernet receiver/media converter which transmits data at 100Mbps full duplex and power over Coax cable or extended CAT5e cable in a PoE+ compliant format. The eBridge100RM is powered via a PoE midspan such as the Altronix NetWay series or by an endspan. The receiver passes the PoE(+) compliant power over cable to the eBridge100TM/eBridge100ST transceiver which in turn passes this power to an enabled IP Camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over existing coax or structured cable.
Applications:
Applications:
- Retrofit digital IP cameras in an analog CCTV installation.
- Works with Megapixel, HD720, HD1080 ,and VGA (SD) cameras.
- Extend Network link distance in an industrial environment over 610m.
- Upgrade deployed CCTV Coax to a digital network in Retail, Casinos, Airports, Schools, Hospitals, etc.
- Ethernet over coax/CAT5e Receiver.
- Transmits IP video/data over coax up to 300m or CAT5e up to 500m.
- 100Mbps full duplex.
- Supports PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at).
- UL/cUL Listed. CE Approved.
Quick Specifications
- Product Line
- eBridge
- Product Model
- eBridge100RM
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
- Management Port
- No
