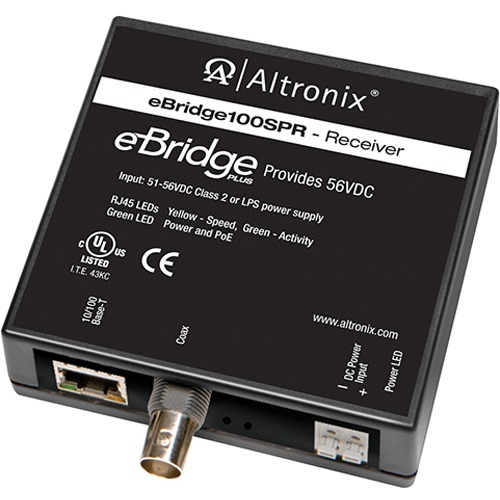

Altronix eBridge100SPR Ethernet over Coax Receiver
Manufacturer: Altronix Corporation
Mfr. Part: EBRIDGE100SPR
1 x Network (RJ-45) - Fast Ethernet - 100Base-TX - 0.30 km - AC Adapter
About This Product
Overview
The eBridge100SPR passes data and sends power over the coax to the eBridge200WPM 2-port Outdoor Transceiver. Data transmission and power over the Coax is possible up to 300m. Maximum range from head end to the PoE camera/device is 500m taking into consideration that up to 100m of structured cable may be deployed at each end. Built in IP management allows for remote camera reset, monitoring and reporting via various IP protocols.
This model replaces eBridge1SPR
This model replaces eBridge1SPR
- Ethernet over coax/CAT5e Receiver for eBridge200WPM.
- Transmits IP video/data over coax up to 300m or CAT5e up to 500m.
- 100Mbps full duplex.
- Supports PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at).
- UL/cUL Listed. CE Approved.
Quick Specifications
- Product Line
- eBridge
- Product Model
- eBridge100SPR
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
- Management Port
- No
