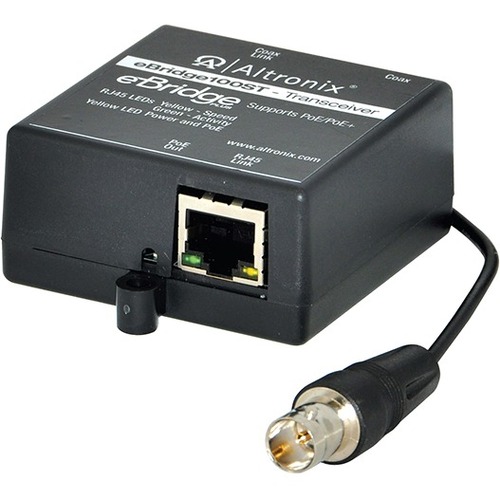

Altronix EoC and PoE/PoE+ Transceiver
Network (RJ-45) - 1x PoE+ (RJ-45) Ports - Fast Ethernet - 10/100Base-TX - 0.50 km - PoE+
About This Product
Overview
eBridge100ST EoC transceiver transmits data at 100Mbps, Full Duplex over Coax cable to a paired eBridge receiver and provides power in a PoE+ compliant format to an enabled device/camera. The eBridge receiver is available in various options (see compatibility list below/Altronix.com) and is powered by an external midspan, such as the Altronix Netway series. The receiver passes PoE+ power over the same coax cable to the eBridge100ST transceiver, which, in turn, passes this power to an enabled IP camera/device. These plug and play units facilitate cost-effective solutions for IP devices. They can be installed at distances greater than 300m. They provide a simple way to replace legacy analog products with new IP devices over existing coax. eBridge100ST is compatible with the following Altronix receivers: eBridge100RM, eBridge400PCRM, eBridge800PCRM or eBridge1600PCRM.
- Ethernet over coax/CAT5e Mini Transceiver.
- Transmits IP video/data over coax up to 300m or CAT5e up to 500m.
- 100Mbps full duplex.
- Supports PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at).
- CE Approved.
Quick Specifications
- Product Line
- eBridge
- Product Model
- eBridge100ST
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
- Management Port
- No
