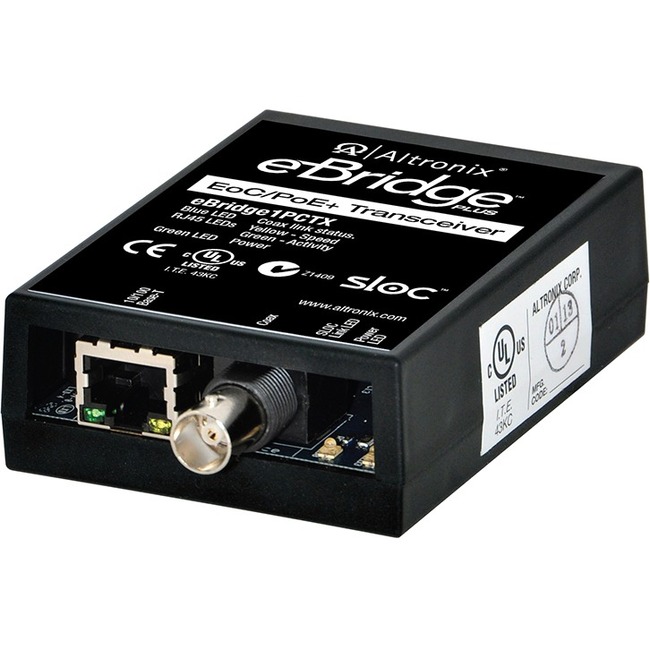

Altronix eBridge1PCTX - IP over Coax Transceiver
1 x Network (RJ-45) - Fast Ethernet - 10/100Base-TX - 0.61 km
About This Product
Overview
The eBridge1PCTX - IP over Coax transceiver is designed for use with eBridge1PCRX, eBridge1PCRM, eBridge4PCRX and eBridge16PCRX receivers to enable fast 10/100Base-T Ethernet digital communication over coax cable. The eBridge1PCTX will not deliver power to non compliant devices, thus avoiding damage to improperly connected non-PoE cameras/devices. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission is extended up to 610m (over five times the 100m Ethernet maximum length) eliminating the need for repeaters.
- Ethernet over coax/CAT5e Transceiver.
- Transmits IP video/data over coax up to 457m.
- 25Mbps full duplex.
- Supports PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at).
- UL/cUL Listed. CE Approved.
Quick Specifications
- Product Line
- eBridge
- Product Model
- eBridge1PCTX
- Packaged Quantity
- 1
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
