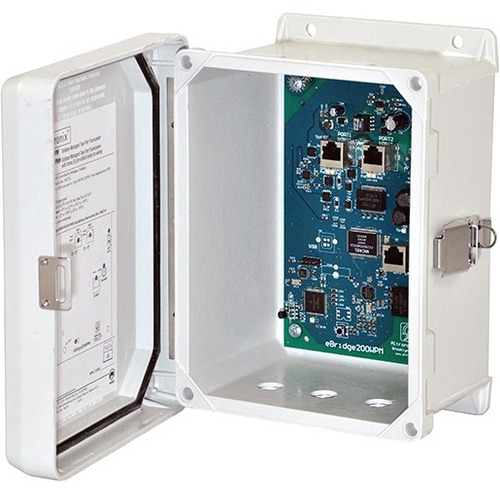

Altronix eBridge EBRIDGE200WPMH Transceiver/Media Converter
Network (RJ-45) - 2x PoE+ (RJ-45) Ports - Fast Ethernet - 100Base-TX - 0.50 km - Pole
About This Product
Overview
eBridge200WPM PoE Ethernet transceiver/media converter transmits data and power over Coax or CAT5 cable over distances that are 3 to 5 times greater than standard Ethernet. Upgrading existing Coax analog camera infrastructure to IP cameras is greatly simplified as well. eBridge200WPM can support up to two PoE or PoE+ cameras/devices or a single Hi-PoE (60W) device. The eBridge200WPM/WPMH offers built-in IP management which allows for remote camera reset, monitoring and reporting via various IP protocols. There is no need to install remote AC mains power, since these devices are simply powered from the low voltage PoE midspan/endspan equipment, such as Altronix NetWay midspans or eBridge100SPR.
- Outdoor Managed Two Port Transceiver with Inlets and Glands.
- 2 ports PoE+ (30W) per port or 1 port Hi-PoE (60W).
- 100Mbps full duplex.
- Supports PoE, PoE+ or Hi PoE.
- UL/cUL Listed. CE Approved.
Quick Specifications
- Product Line
- eBridge
- Product Model
- EBRIDGE200WPMH
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
- Management Port
- No
