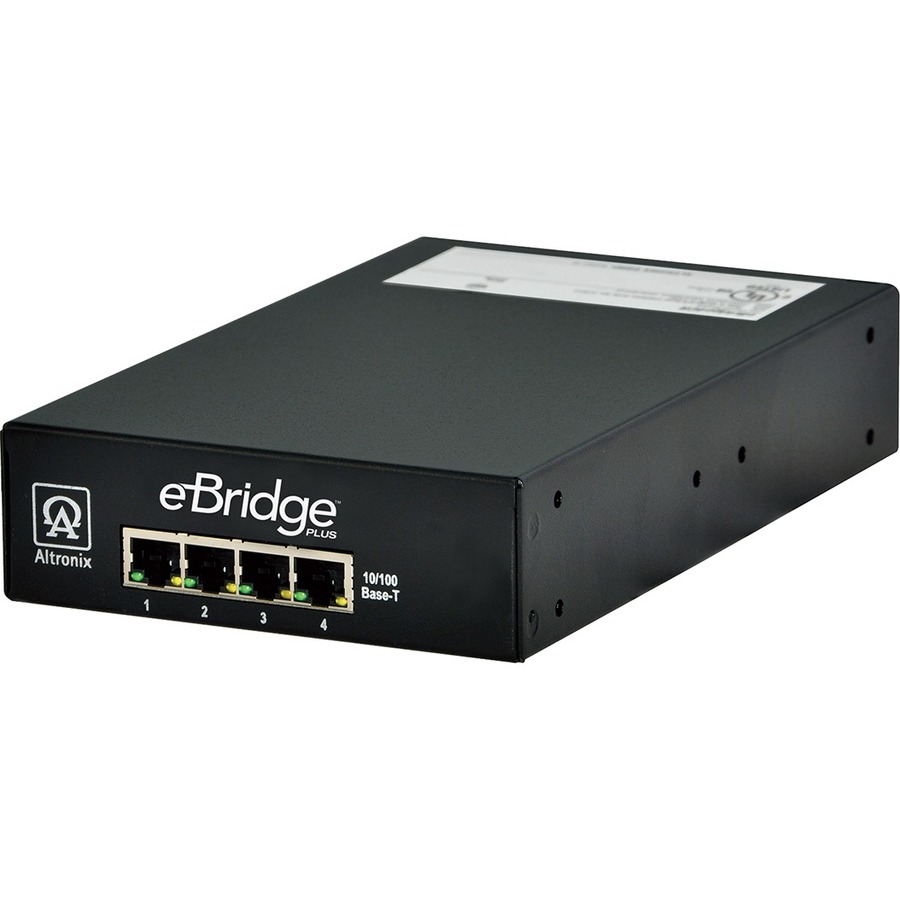

Altronix EBRIDGE4PCRM Video Extender Receiver
Manufacturer: Altronix Corporation
Mfr. Part: EBRIDGE4PCRM
4 Input Device - 1640.42 ft Range - 4 x Network (RJ-45) - Twisted Pair, Coaxial
About This Product
Overview
4-Port Ethernet over coax Receiver. Transmits IP video/data over coax up to 500m @ 25mbps full duplex and supports PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at). Compatible with eBridge1PCT and eBridge1PCTX transceivers. UL/cUL Listed (UL60950-1). CE Approved.
- IEEE 802.3af (15W) and IEEE 802.3at (30W).
- 25Mbps of data at distances up to 500m over Coax.
- Eliminates the costs and labor associated with installing new network cabling.
- Retrofit digital IP cameras in an analog CCTV installation.
- Auto detection and protection of legacy non-PoE cameras/devices.
- Works with Megapixel, HD720, HD1080 & VGA (SD) cameras.
- Extends Network link distance in an industrial environment.
- Upgrades deployed CCTV Coax to a digital network for Retail, Casinos, Airports, Schools, Hospitals, etc.
Quick Specifications
- Product Line
- eBridge
- Product Model
- EBRIDGE4PCRM
- Product Type
- Video Extender Receiver
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 4
- Maximum Operating Distance
- 1640.42 ft
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 4
