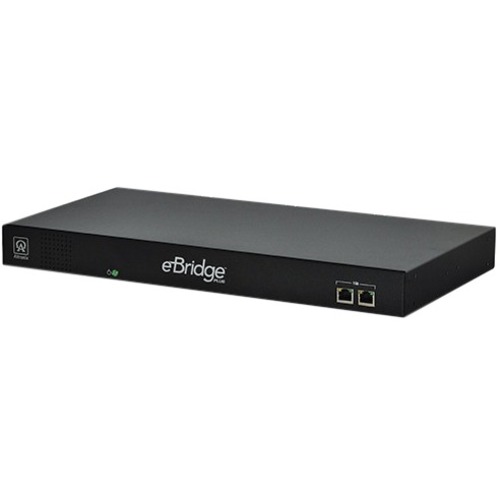

Altronix EoC 8 Port Receiver with Integrated 240W PoE/PoE+ Switch
Manufacturer: Altronix Corporation
Mfr. Part: EBRIDGE800E
8 Ports - Manageable - Fast Ethernet - 10/100Base-T - 2 Layer Supported - Twisted Pair, Coaxial - 1U - Rack-mountable - Lifetime Limited Warranty
About This Product
Overview
The Bridge800E is an all-in-one head-end solution for upgrading coax to IP that combines a PoE+ switch and EoC Receiver into a single integrated unit for upgrading existing coax infrastructure and deploying the latest IP devices. This 8-Port Managed EoC Receiver with Integral PoE+ switch provides 30W full power per port (240W max). Features also include an integral battery charger for applications requiring backup and embedded LINQ™ Technology to monitor, control and report power and diagnostics from anywhere.
- 8-ports provide 30W full power per port.
- 240W total power.
- IEEE 802.3at (30W), IEEE 802.3af (15.4W).
- (2) 1Gb uplinks (10/100/1000 Mbps).
- Each port rated at 100Mbps at distances up to 300m.
- Built-in IP management allows for remote camera reset and monitoring.
- Email and Windows Dashboard Alert notifications report real-time diagnostics.
- Eliminates the costs and labor associated with installing
- Retrofit digital IP cameras in an analog CCTV installation.
- Works with Megapixel, HD720, HD1080 & VGA (SD) cameras.
Quick Specifications
- Product Model
- Bridge800E
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 8
- Uplink Port
- Yes
- Modular
- No
- Stack Port
- No
- Port/Expansion Slot Details
- 8 x Network 2 x Gigabit Ethernet Uplink
- Media Type Supported
- Twisted Pair Coaxial
