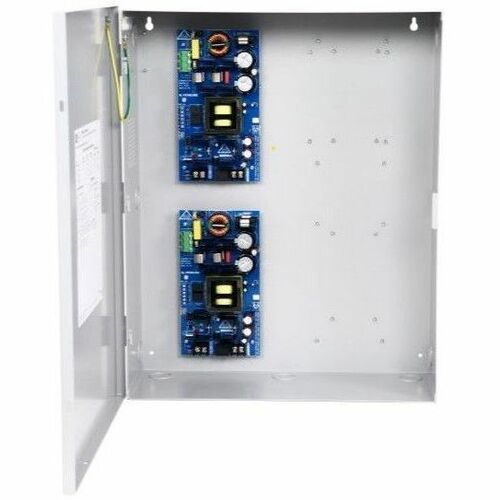

Maximal MAXFIT77E Power Supply
Manufacturer: Altronix Corporation
Mfr. Part: MAXFIT77E
Enclosure - 24 V DC Output
About This Product
Overview
Altronix MaxFit Expandable Power Systems provide system designers and installers with optimum power choices and the highest levels of versatility. They provide 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/ chargers. Suit of features includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.
- Filtered and electronically regulated outputs
- Thermal and short circuit protection with auto reset.
- Supervision; AC Fail; Low Battery and Battery Presence
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
- AC input and DC output LED indicators
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
- Lifetime Warranty
Quick Specifications
- Product Line
- MaxFit
- Product Series
- E
- Product Model
- MAXFIT77E
- Product Type
- Power Supply
- Output Voltage
- 24 V DC
- Output Voltage Detail
- 24 V DC @ 10 A
- Output Current
- 10 A
- Form Factor
- Enclosure
