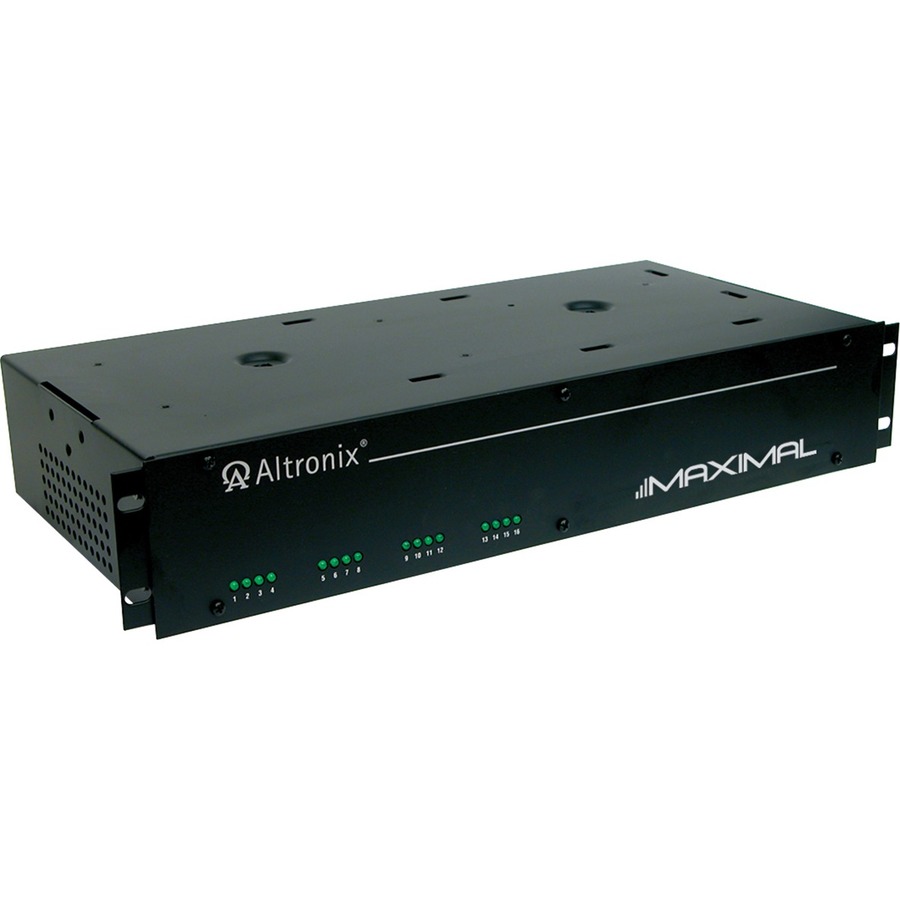

Maximal PDU
Manufacturer: Altronix Corporation
Mfr. Part: MAXIMAL3RD
120 V AC - 2U - Rack-mountable
About This Product
Overview
Power Supply/Charger with Access power controllers - 16 PTC outputs are selectable for 12VDC or 24VDC @ 6 amp, outputs are individually selectable for Fail-Safe or Fail-Secure operation, fire alarm disconnect is selectable by output, AC & battery monitoring, 2U EIA 19" Rack Mount Chassis, 115VAC input.
- Sixteen (16) independently controlled PTC protected 12VDC and/or 24VDC outputs.
- Individually selectable Mag Lock/Strike (Fail-Safe, Fail-Secure) solid state PTC protected outputs.
- Thermal and short circuit protection with auto reset.-
- Supervision: AC Fail, Low Battery
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the outputs.
- Fire Alarm disconnect
- Built-in charger for sealed lead acid or gel type batteries.
- Instantaneous transfer to stand-by batteries.
Quick Specifications
- Product Model
- MAXIMAL3RD
- Packaged Quantity
- 1
- Product Type
- PDU
- Input Voltage
- 120 V AC
- Output Voltage
- 12 V DC 24 V DC
- Mount Type
- Rack-mountable
- Rack Height
- 2U
- Height
- 7.2"
