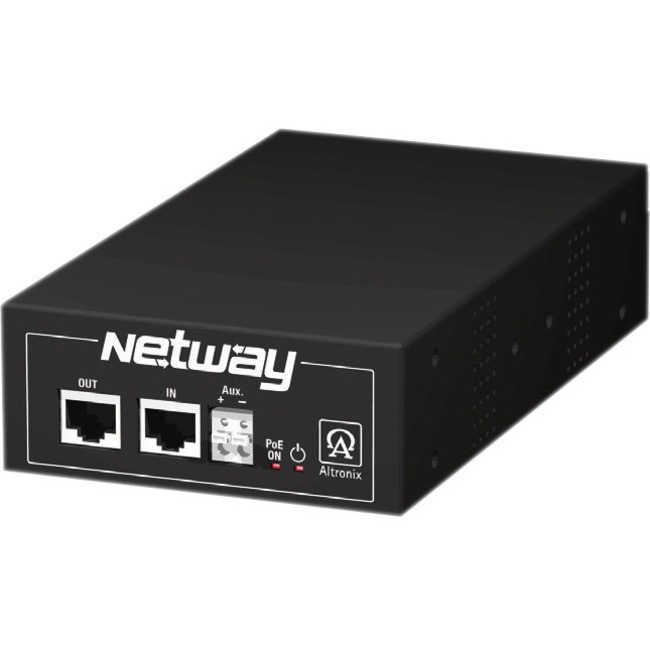

NetWay NETWAY1BT PoE Injector
Manufacturer: Altronix Corporation
Mfr. Part: NETWAY1BT
120 V AC, 230 V AC Input - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-T Output Port(s) - 90 W
About This Product
Overview
Altronix NetWay1BT is an single port midspan/injector that provides PoE/PoE+/Hi PoE up to 90W (802.3bt compliant) power per port and passes data at 10/100/1000 Mbps at distances up to 100m.
- IEEE 802.3af (15W), IEEE 802.3at (30W), and IEEE 802.3bt (90W) compliant
- Universal (115VAC or 230VAC) power input
- Power provided using all 4 pairs on structured cable
- 10/100/1000Mbps, half/full duplex, auto negotiation
- Port provides up to 90W max
- PoE and Power LED
- Aux. Class 2 power-limited output rated @ 56VDC/90W
- Auto detection and protection of legacy non-PoE cameras/devices
- Extends Network link distance in an industrial environment
- CE European Conformity
Quick Specifications
- Product Model
- NETWAY1BT
- Product Type
- PoE Injector
- Input Voltage
- 120 V AC 230 V AC
- Maximum Input Current
- 750 mA
- Maximum Output Power
- 90 W
- Input Ports
- 1 x 10/100/1000Base-T
- Output Ports
- 1 x 10/100/1000Base-T
- Height
- 1.7"
