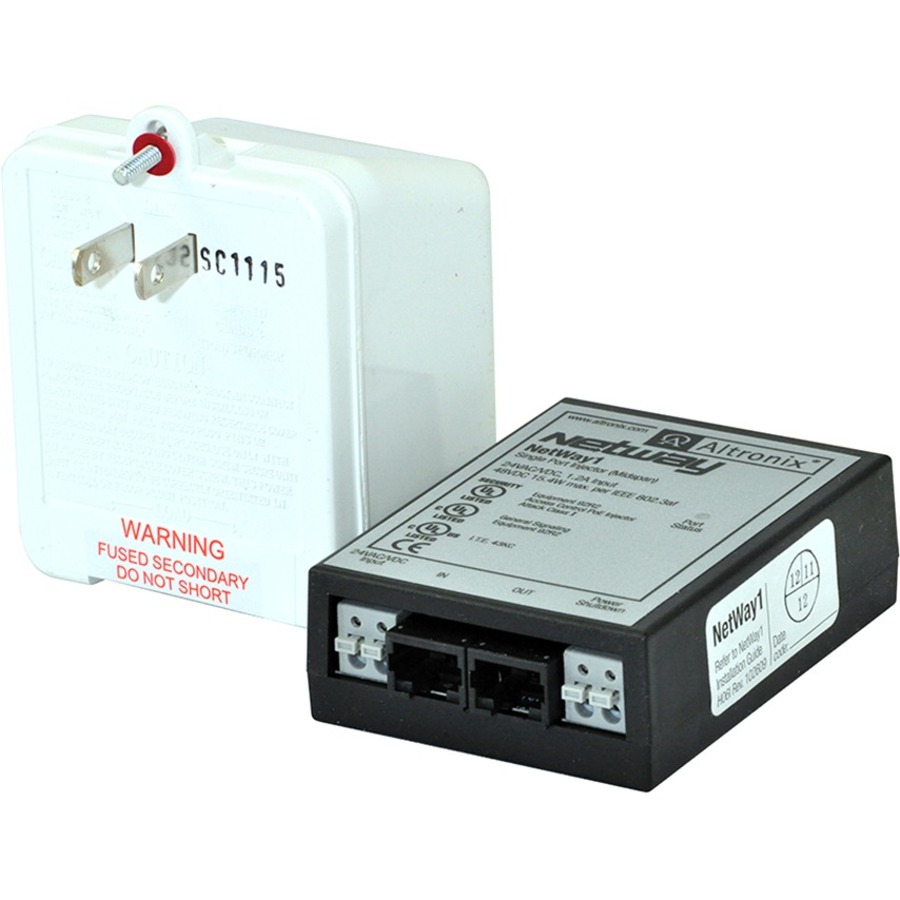

Altronix NETWAY1P Power over Ethernet Injector
Manufacturer: Altronix Corporation
Mfr. Part: NETWAY1P
24 V AC, 24 V DC Input - 48 V DC Output - 1 x 10/100Base-TX Input Port(s) - 1 x 10/100Base-TX Output Port(s) - 15.40 W
About This Product
Overview
Altronix NetWay1P is a single port midspan PoE compliant power injector which provides power and passes data(e.g. video) for PoE compliant devices. Devices may be located up to 100m (328 ft.) from NetWay1P. A NetWayXT repeater module can be utilized to extend the distance an additional100m (328 ft.) for a total range of up to 200m (656 ft.). A maximum range of 600m (1968 ft.) is possible using multiple repeaters, based on device port requirement. NetWay1 is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.
- Single Port Midspan PoE Injector Kit.
- One PoE compliant port rated @ 15.4W, PoE shutdown feature, compact insulated housing.
- Includes 24VAC/40VA Plug-in transformer.
- UL and cUL listed, CE approved.
Quick Specifications
- Product Line
- NetWay
- Product Model
- NETWAY1P
- Packaged Quantity
- 1
- Product Type
- PoE Injector
- Input Voltage
- 24 V AC 24 V DC
- Maximum Output Voltage
- 48 V DC
- Maximum Input Current
- 1.20 A
- Maximum Output Power
- 15.40 W
