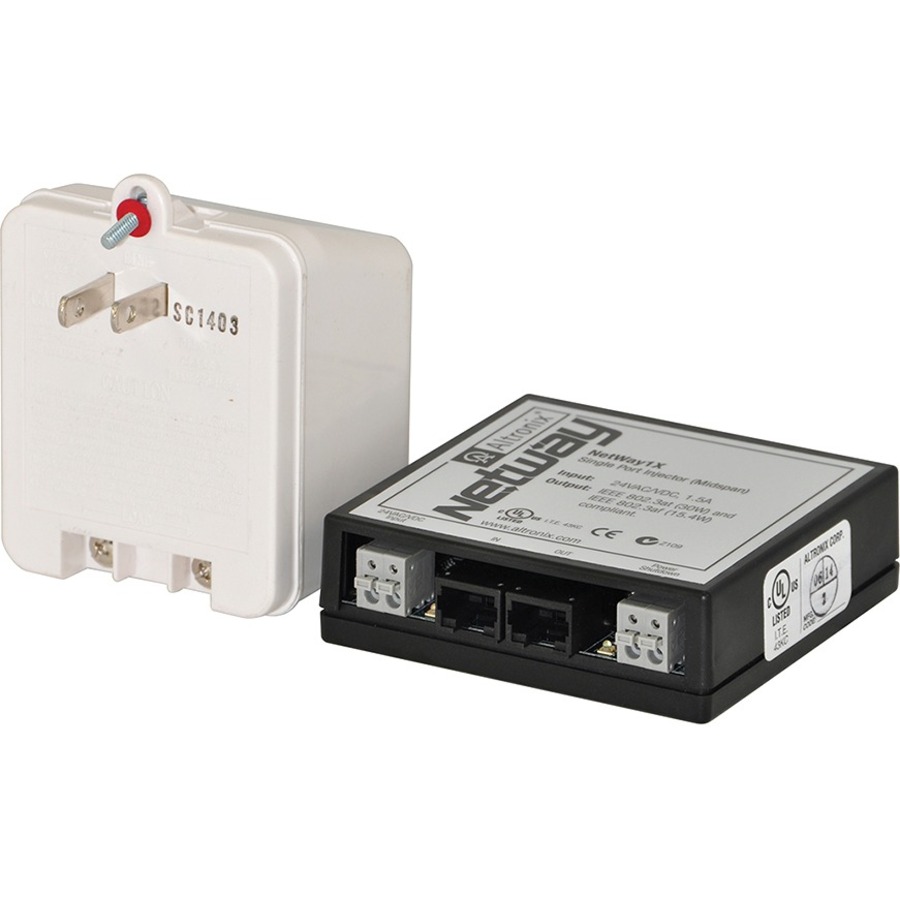

Altronix NetWay1XP Power over Ethernet Injector
Manufacturer: Altronix Corporation
Mfr. Part: NETWAY1XP
24 V AC, 24 V DC Input - 1 x 10/100Base-TX Input Port(s) - 1 x 10/100Base-TX Output Port(s) - 30 W
About This Product
Overview
NetWay1X is a single port midspan PoE/PoE+ compliant power injector which provides power and passes data (e.g. video) for PoE/PoE+ compliant devices. Devices may be located up to 100m (328 ft.) from NetWay1X. A NetWayXTX repeater module can be utilized to extend the distance an additional100m (328 ft.) for a total range of up to 200m (656 ft.). A maximum range of 600m (1968 ft.) is possible using multiple repeaters, based on device port requirement. NetWay1X is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.
- Single Port Midspan PoE/PoE+ Injector Kit.
- One PoE/PoE+ compliant port rated @ 30W max.
- IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
- PoE shutdown feature. Compact insulated housing.
- Includes 24VAC/50VA Plug-in transformer.
- UL and cUL listed, CE approved.
Quick Specifications
- Product Line
- NetWay
- Product Model
- NetWay1XP
- Packaged Quantity
- 1
- Product Type
- PoE Injector
- Input Voltage
- 24 V AC 24 V DC
- Maximum Input Current
- 1.50 A
- Maximum Output Power
- 30 W
- Input Ports
- 1 x 10/100Base-TX
