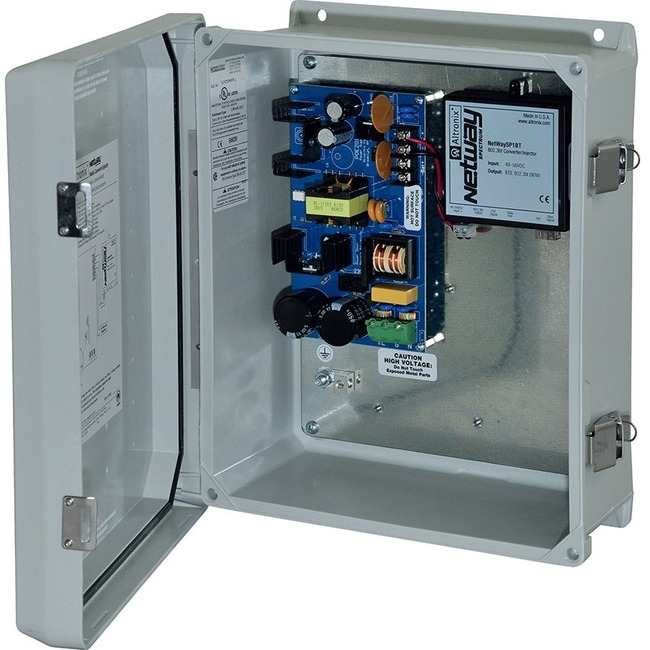

Altronix 802.3bt Media Converter/Injector with Integral Power
Manufacturer: Altronix Corporation
Mfr. Part: NETWAYSP1BTWP
Network (RJ-45) - 1x PoE (RJ-45) Ports - Single-mode, Multi-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX/LX - 0.10 km - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - AC - Pole
About This Product
Overview
Altronix NetWaySP1BTWP Outdoor 802.3bt media converter/injector provides a single 802.3bt (4PPoE) port up to 90W and accommodates Fiber (1000Base-X/SX/ LX) or structured cable to transmit data. Units can be deployed with structured cable, conventional single/multimode fiber or composite cable (fiber + copper combined). Cameras/edge devices may be located up to 100m from the unit.
- Single PoE port provides up to 90W for high PoE illuminators, lighting, PTZ cameras, etc.
- Gigabit SFP port.
- 10/100/1000 Mbps data port.
- IEEE 802.3bt (90W), IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
- Built-in battery charger
- Lifetime Warranty / Made in the U.S.A.
- NEMA 4/4X, IP66-11 Rated enclosure for outdoor use
Quick Specifications
- Product Model
- NETWAYSP1BTWP
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of PoE (RJ-45) Ports
- 1
- PoE Port Type
- PSE
- Media Type Supported
- Optical Fiber Twisted Pair
- Fiber Mode Supported
- Single-mode Multi-mode
