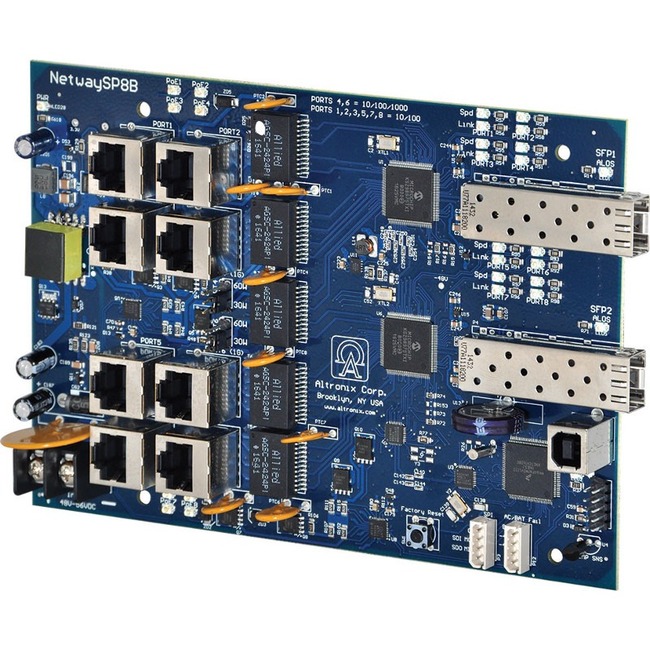

NetWay 8-Port PoE+ Switch Board
Manufacturer: Altronix Corporation
Mfr. Part: NETWAYSP8B
8 Ports - Gigabit Ethernet, Fast Ethernet - 10/100/1000Base-T, 10/100Base-T, 100/1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - 115 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Lifetime Limited Warranty
About This Product
Overview
Altronix NetWaySP8B PoE+ Switch board provides two (2) 1Gb SFP (Fiber) ports and eight (8) PoE+ (30W) or two (2) Hi-PoE (60W) ports, passing data for PoE/PoE+/Hi-PoE compliant devices.Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere.
- Two (2) Gigabit SFP ports.
- 115W total power: Eight (8) PoE/PoE+ (up to 30W) ports or two (2) Hi-PoE (60W) ports.
- Two (2) 10/100/1000 Mbps ports.
- Six (6) 10/100 Mbps ports.
- IEEE 802.3at (30W), IEEE 802.3af (15W) compliant, or Hi-PoE (60W).
- PoE activity LED indicators.
- VLAN (Virtual Local Area Networks) subnetwork allows for the grouping together of devices for improved network traffic and higher security.
- Mounting hardware included.
- UL Listed in the U.S. and Canada.
- CE Approved.
Quick Specifications
- Product Model
- NetWaySP8B
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 8
- Network (RJ-45)
- Yes
- Modular
- Yes
- Port/Expansion Slot Details
- 6 x Fast Ethernet PoE+ 2 x Gigabit Ethernet PoE+ 2 x Gigabit Ethernet Expansion Slot
- Media Type Supported
- Twisted Pair Optical Fiber
- Ethernet Technology
- Gigabit Ethernet Fast Ethernet
