Altronix IP and PoE+ over Extended Distance CAT5e or UTP Solution
Manufacturer: Altronix Corporation
Mfr. Part: PACE1PRMT
2 x Network (RJ-45) - 1640.42 ft Extended Range
About This Product
Overview

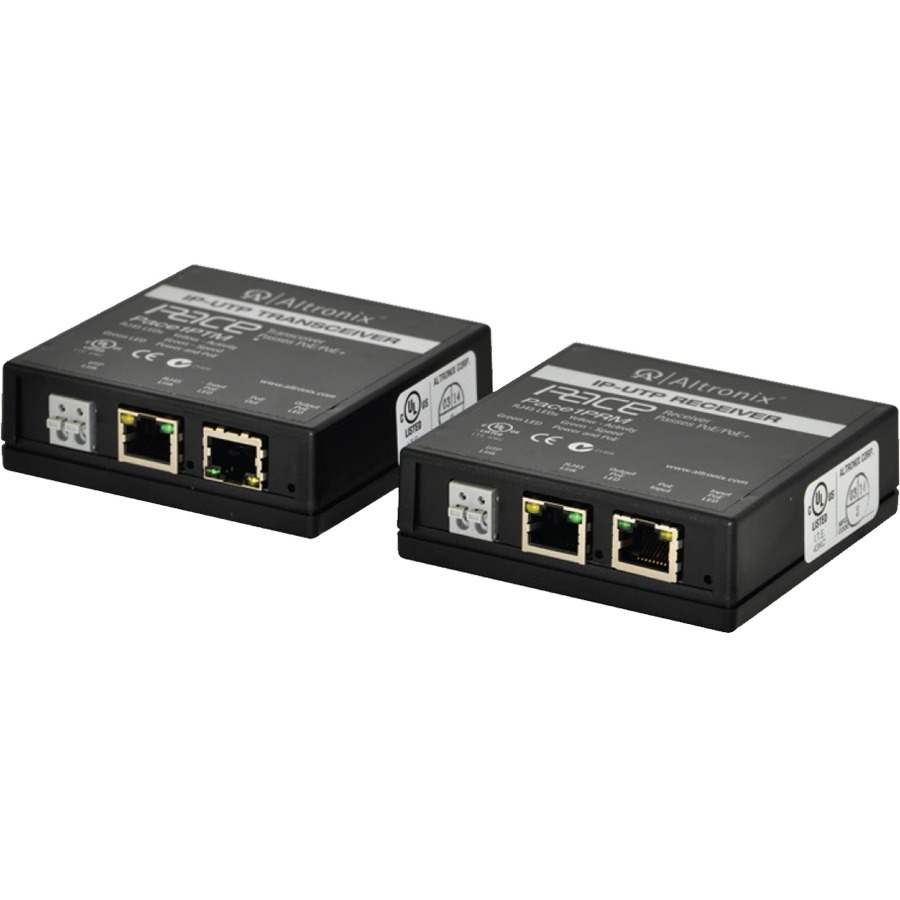

Pace1PRMT is a long range Ethernet adapter kit which transmits data at 100mbps full duplex and power via a single twisted pair (UTP) or Cat5e or higher cable in a PoE(+) compliant format. The Pace1PRM receiver is powered via a PoE midspan such as the Altronix Netway series or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over single twisted pair (UTP) or structured cable.
Applications:
Applications:
- Extend Network link distance in an industrial environment over 700m
- Retrofit digital IP cameras in an analog CCTV CAT5e wired installations.
- Works with Megapixel, HD720, HD1080 and VGA (SD) cameras.
- IEEE 802.3af (15W) and IEEE 802.3at (30W)
- Throughput is rated to pass 100Mbps
- Eliminates the costs and labor associated with installing new network cabling
- Retrofit digital IP cameras in an analog CCTV installation
- Auto detection and protection of legacy non-PoE cameras/devices
- Works with Megapixel, HD720, HD1080 & VGA (SD) cameras
- Extends Network link distance in an industrial environment
- Retrofit digital IP cameras in an analog CCTV CAT5e wired installations
- UL Listed in the U.S. and Canada
- CE Approved
- C-Tick Compliant
- Lifetime Warranty / Made in the U.S.A
Quick Specifications
- Product Line
- Pace
- Product Type
- Network Extender
- Maximum Extended Range
- 1640.42 ft
- Maximum Data Transfer Rate
- 12.50 MB/s
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 2
- Height
- 1"
- Width
- 3.5"
