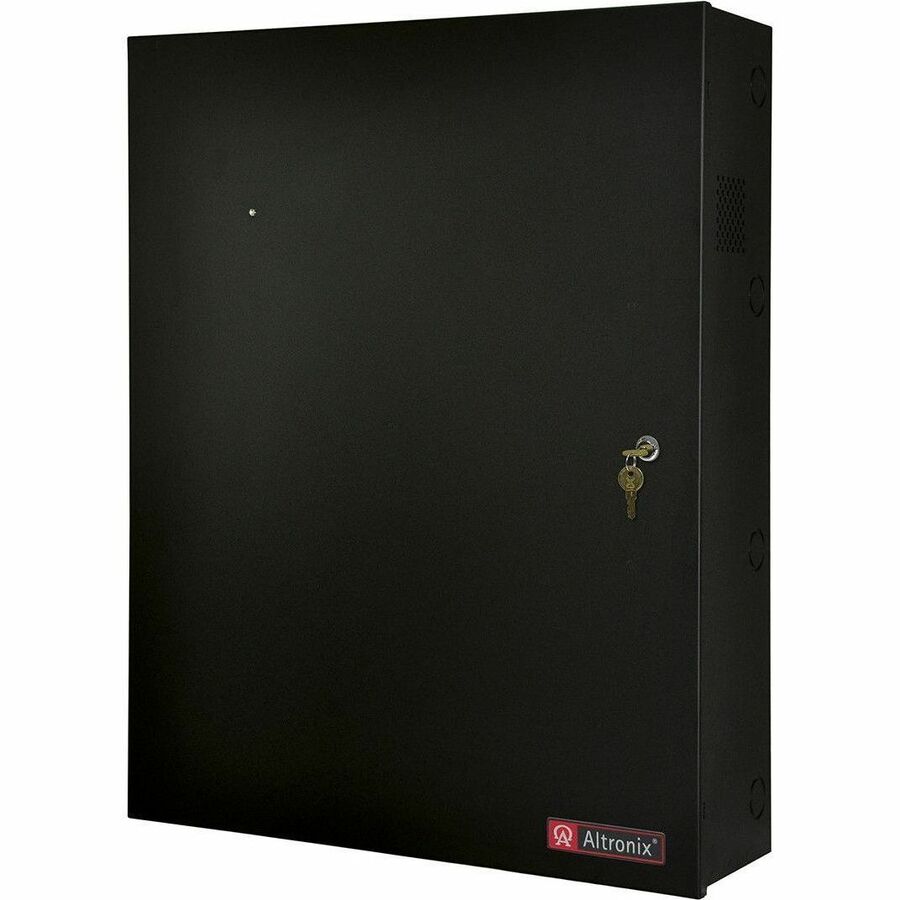

Altronix 8-Door Altronix/Paxton Access and Power Integration Kit
Manufacturer: Altronix Corporation
Mfr. Part: T2PXK78D
About This Product
Overview
Altronix T2PXK78D kit consists of Trove2 enclosure, TPX2 Paxton/Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) PTC protected eight (8) output access power controller and one (1) PTC protected eight (8) dual output power distribution module and one (1) voltage regulator. This kit also accommodates Paxton Net2 Plus boards for up to eight (8) doors or Paxton10 for up to six (6) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
- 24VDC @ 10A power supply charger
- Accommodates the following Paxton modules: Net2 Plus, Paxton10
- Convenient knockout configuration
- One (1) single knockout 2.415" (2" Conduit)
- Sixteen (16) double knockouts
- 1.362" (1" Conduit) / 1.115" (3/4" Conduit)
- Supervision
- Battery Fail and Battery Presence
- Agency Listings
- All Altronix components of this Trove kit are UL Listed sub-assemblies. Please refer to the Sub-Assembly Installation Guides for further information
- UL: UL294 - Access Control System
- cUL: CAN/ULC - s319-05 - Electronic Access Control Systems
- CE European Conformity
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
- Lifetime Warranty
Quick Specifications
- Product Type
- Power Integration Kit
- Dimensions
- Dimensions: 21.5"Wx27.25"Hx6.5"D(546.1 mm W x 692.15 mm H x 165.1 mm D).
- Weight (Approximate)
- Product Weight: 51.5 Lbs.(23.36 kg).
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Limited Warranty
- Lifetime
