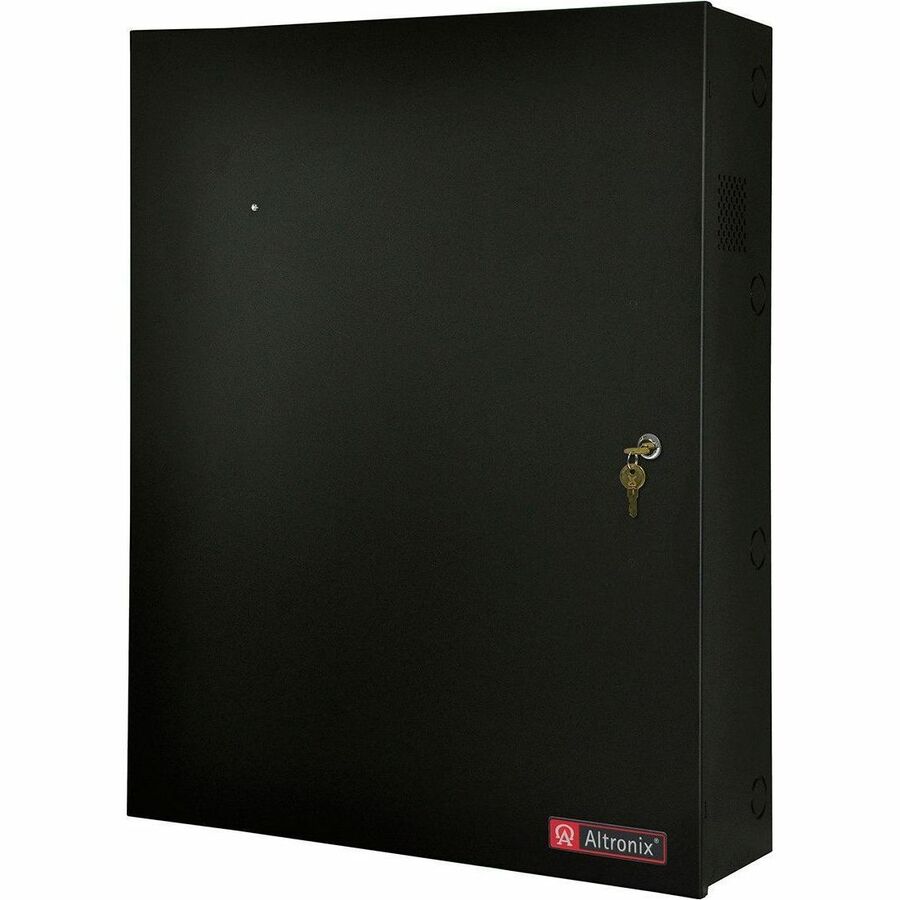

Altronix 20-Door Altronix/CDVI Access and Power Integration Kit
Manufacturer: Altronix Corporation
Mfr. Part: T3CVK7720D
About This Product
Overview
Altronix T3CVK7720D kit consists of Trove3 enclosure, TCV3 CDVI/Altronix backplane with two (2) 24VDC @ 10A power supply/chargers, two (2) 8-output PTC access power controllers, one (1) 4-output PTC access power controller and one (1) 8-output PTC power distribution module. Also featured is a rocker switch bracket with two (2) rocker switches. This kit also accommodate various combinations of CDVI Atrium A22K/A22NB/ADH10 boards for up to twenty (20) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
- 24VDC power supply/charger
- Accommodates up to ten (10) CDVI Atrium A22K/A22NB/ADH10 boards
- Convenient knockout configuration
- One (1) single knockout 2.415" (2" Conduit)
- Sixteen (16) double knockouts
- 1.362" (1" Conduit) / 1.115" (3/4" Conduit)
- Supervision
- AC Fail
- Battery Fail and Battery Presence
- Agency Listings
- All Altronix components of this Trove kit are UL Listed sub-assemblies. Please refer to the Sub-Assembly Installation Guides for further information
- UL: UL294 - Access Control System
- cUL: CAN/ULC - s319-05 - Electronic Access Control Systems
- CE European Conformity
- 16 AWG galvanized steel backplane simplifies board layout and wire management
- Enclosure accommodates up to four (4) 12VDC/12AH batteries
- Lifetime Warranty
Quick Specifications
- Product Model
- T3CVK7720D
- Product Type
- Power Integration Kit
- Dimensions
- Dimensions: 30.12"Wx36.12"Hx7.06"D(768.1 mm W x 917.5 mm H x 179.3 mm D).
- Weight (Approximate)
- Product Weight: 85 Lbs.(38.6 kg).
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Limited Warranty
- Lifetime
