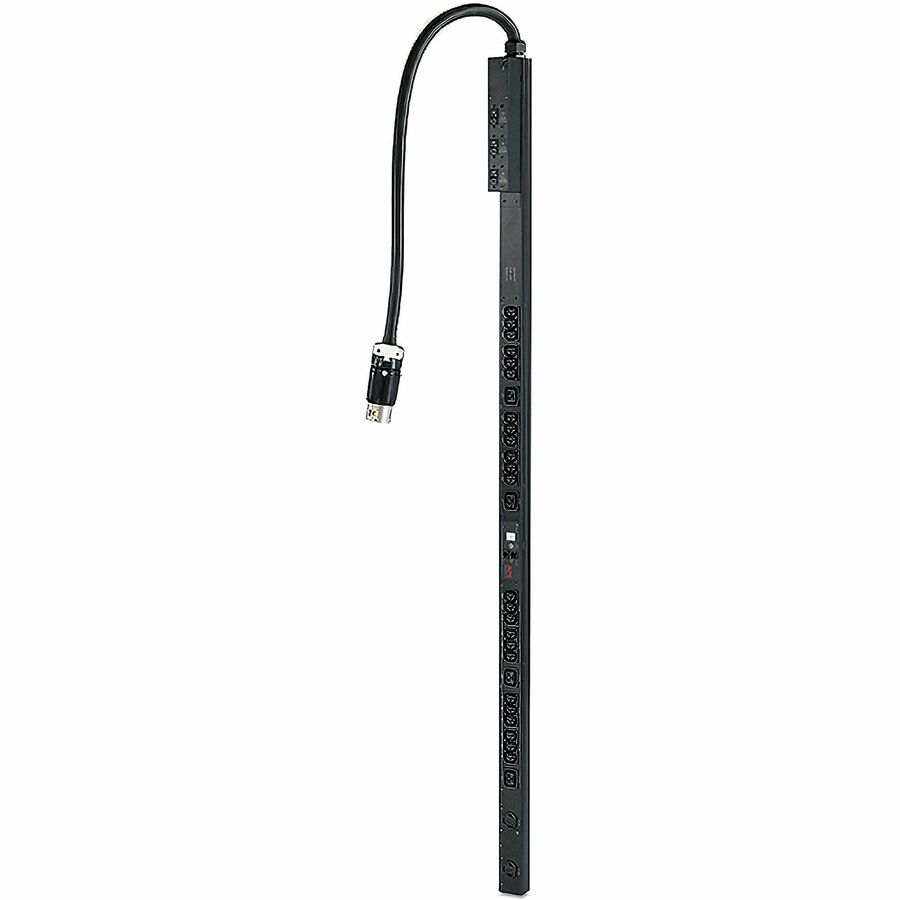

APC NetShelter Metered Rack PDU, Zero U, 14.4kW, 208V, 24 C13, 4 C19, 2 NEMA L6-30R outlet
Manufacturer: Schneider Electric SA
Mfr. Part: AP7869B
Metered - CS8365 - 4 x IEC 60320 C19, 2 x NEMA L6-30R, 24 x IEC 60320 C13 - 208 V - 14.40 kW - Overload Protection - 9.84 ft Cord Length - 0U - Vertical - Rack-mountable
About This Product
Overview
It is a metered rack PDU designed for Zero U vertical mounting. It supports a maximum current of 40A and operates at 208V. The PDU features 24 IEC 60320 C13, 4 IEC 60320 C19, and 2 NEMA L6-30R outlets. It has a load capacity of 14400 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.
- Provides 24 IEC 60320 C13, 4 IEC 60320 C19, and 2 NEMA L6-30R outlets for comprehensive power distribution
- Vertical mounting to save valuable rack space
- Supports up to 40A, 208V power distribution, ensuring reliable power delivery
- Includes a cord retention bracket and toolless mounting kit for quick setup
Quick Specifications
- Product Type
- PDU
- PDU Type
- Metered
- Phase
- Three Phase
- Plug/Connector Type
- CS8365
- Plug/Connector Detail
- 1 x CS8365
- Receptacle Type
- IEC 60320 C19 NEMA L6-30R IEC 60320 C13
- Receptacle Detail
- 4 x IEC 60320 C19 2 x NEMA L6-30R 24 x IEC 60320 C13
- Protection Type
- Overload Protection
