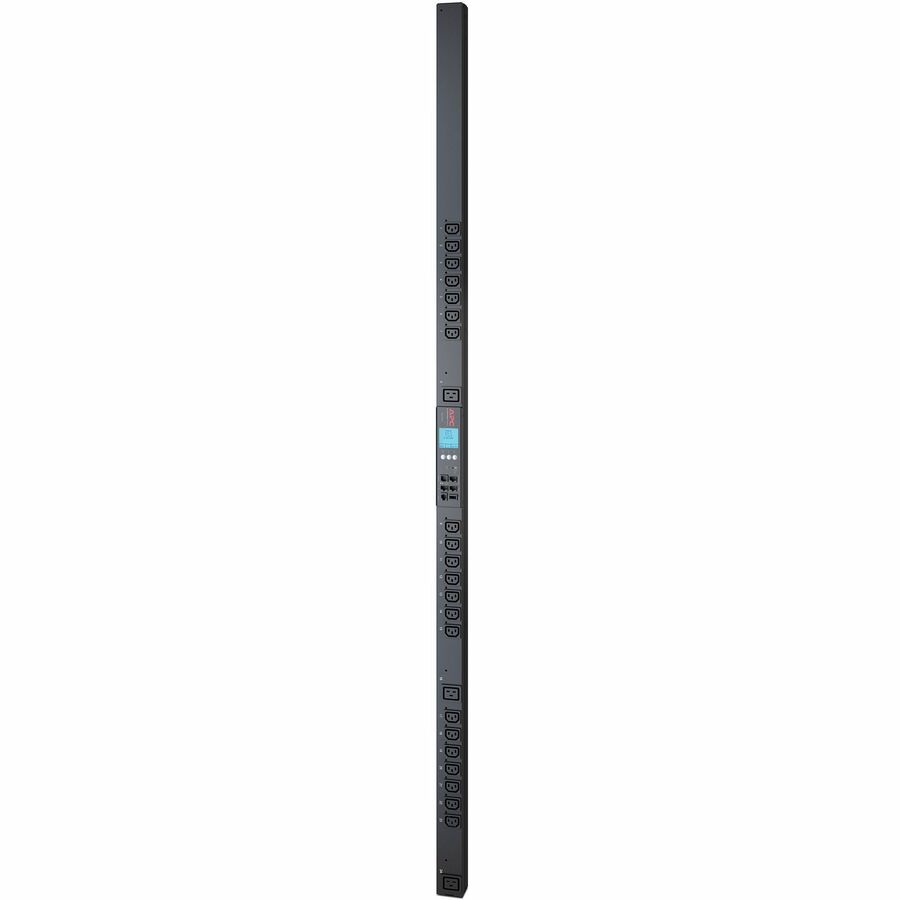

APC NetShelter Metered-by-Outlet with Switching Rack PDU, 2G, 0U, 20A, 208V, 21 C13 and 3 C19 outlet

Manufacturer: Schneider Electric SA
Mfr. Part: AP8659NA3

Metered-by-Outlet - NEMA L6-20P - 21 x IEC 60320 C13, 3 x IEC 60320 C19 - 200 V, 208 V, 230 V - 9.51 ft Cord Length - 0U - Vertical - Rack-mountable - Tower

APC NetShelter Metered-by-Outlet with Switching Rack PDU, 2G, 0U, 20A, 208V, 21 C13 and 3 C19 outlet

About This Product

Overview

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

  • Ideal for Colocation, large data centers or distributed IT sites
  • Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
  • Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
  • Stay on top by defining alarm thresholds in order to avoid overloaded circuits
  • Zero U toolless installation
  • Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles
  • User-defined alarms warn of potential circuit overloads before critical IT failures occur

Quick Specifications

Product Type
PDU
PDU Type
Metered-by-Outlet
Plug/Connector Type
NEMA L6-20P
Receptacle Type
IEC 60320 C19 IEC 60320 C13
Receptacle Detail
21 x IEC 60320 C13 3 x IEC 60320 C19
Input Voltage
200 V 208 V 230 V
Input Voltage Range
200 V AC - 230 V AC
Output Voltage
208 V AC
