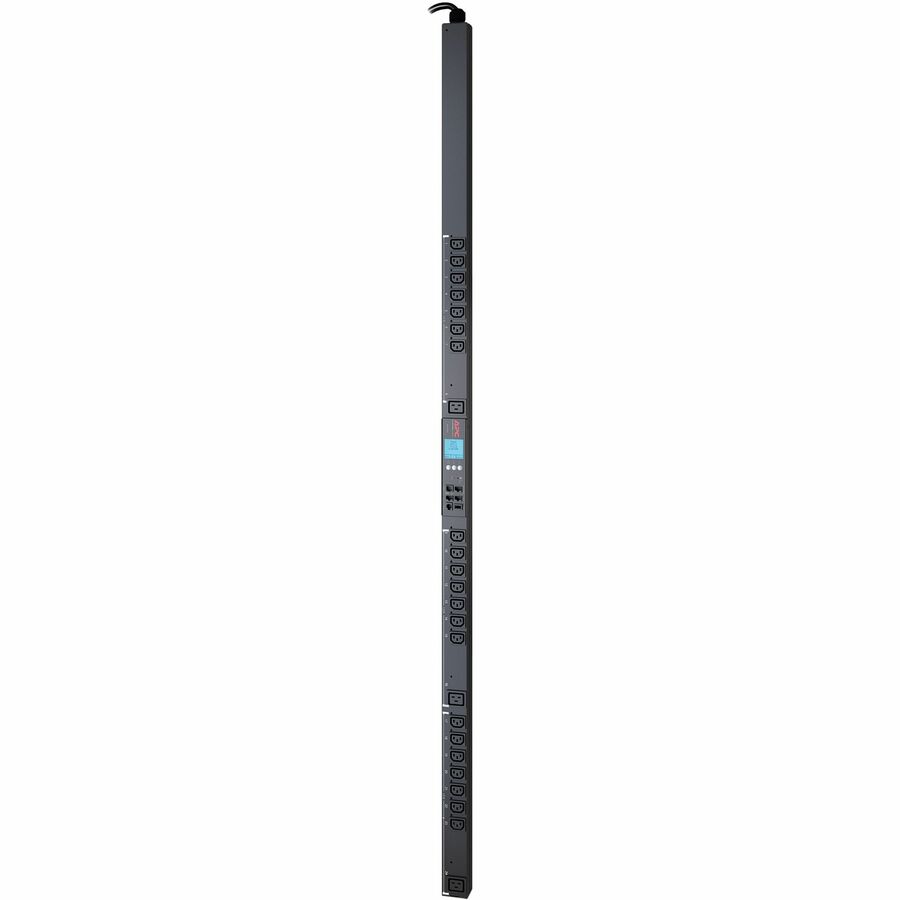

APC NetShelter Metered-by-Outlet with Switching Rack PDU, 2G, 0U, 11.0kW, 230V, 21 C13 and 3 C19 outlet
Metered-by-Outlet - IEC 60309 16A 3P+N+PE, IEC 60309 20A 3P+N+PE - 400 V - 5.91 ft Cord Length - 0U - Vertical - Tower
About This Product
Overview
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
- 1-Year Secure Network Management Card subscription included
- Ideal for Colocation, large data centers or distributed IT sites
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
- Stay on top by defining alarm thresholds in order to avoid overloaded circuits
- Zero U toolless installation
- User-defined alarms warn of potential circuit overloads before critical IT failures occur
Quick Specifications
- Product Type
- PDU
- PDU Type
- Metered-by-Outlet
- Plug/Connector Type
- IEC 60309 16A 3P+N+PE IEC 60309 20A 3P+N+PE
- Input Voltage
- 400 V
- Output Voltage
- 230 V AC
- Color Family
- Black
- Product Color
- Black
- Mounting Orientation
- Vertical
