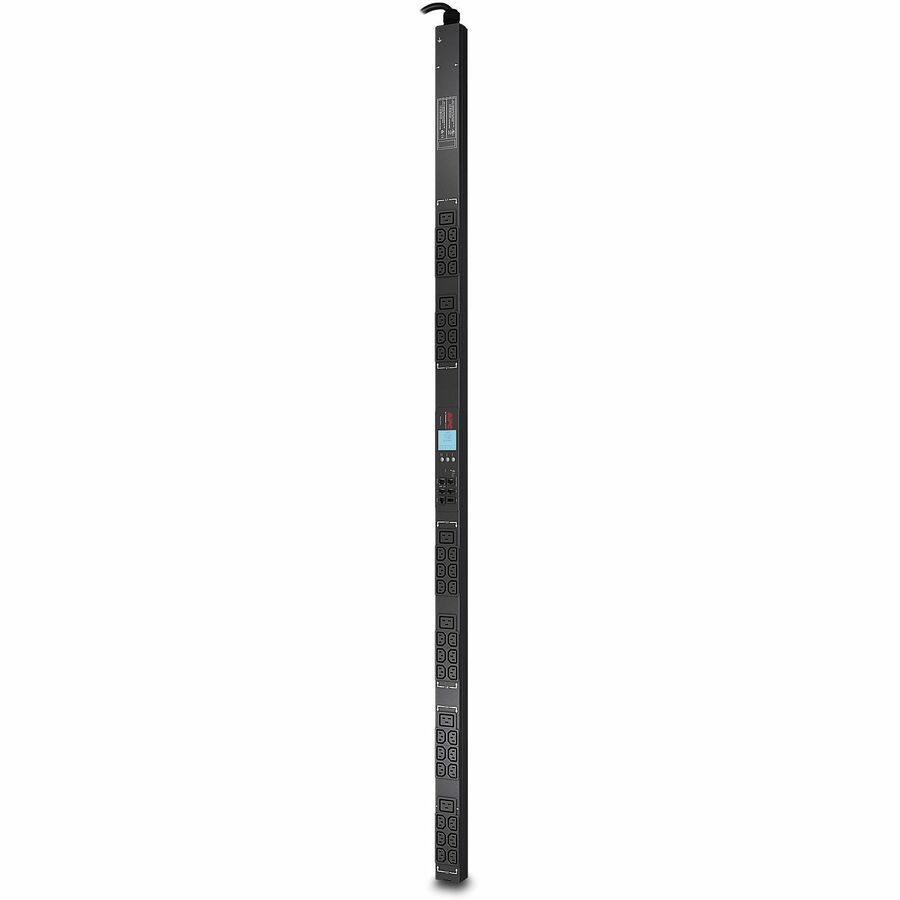

APC NetShelter Metered Rack PDU, 0U, 3PH, 11kW 230V 16A or 11kW 230V 16A, 36 C13 and 6 C19 outlets, IEC 309 3P+N+PE cord
Metered - IEC 60309 16A 3P+N+PE, IEC 60309 20A 3P+N+PE - 400 V - 5.97 ft Cord Length - 0U - Rack-mountable
About This Product
Overview
APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This 3 phase PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU via IEC 309 3P+N+PE plug with a 1.8m (16 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates
- Ideal for colocation, large or remote data center operators
- Plan capacity & balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Enables improved energy efficiency and scope 1 and 3 emissions tracking
- Easily monitor and manage through EcoStruxure IT and other platforms
- 1-Year Secure Network Management Card subscription included
- Stay on top of potential circuit overloads with user-defined alarms
Quick Specifications
- Product Line
- NetShelter
- Product Series
- Metered
- Product Model
- AP8881
- Product Type
- PDU
- PDU Type
- Metered
- Plug/Connector Type
- IEC 60309 16A 3P+N+PE IEC 60309 20A 3P+N+PE
- Input Voltage
- 400 V
- Output Voltage
- 230 V AC
