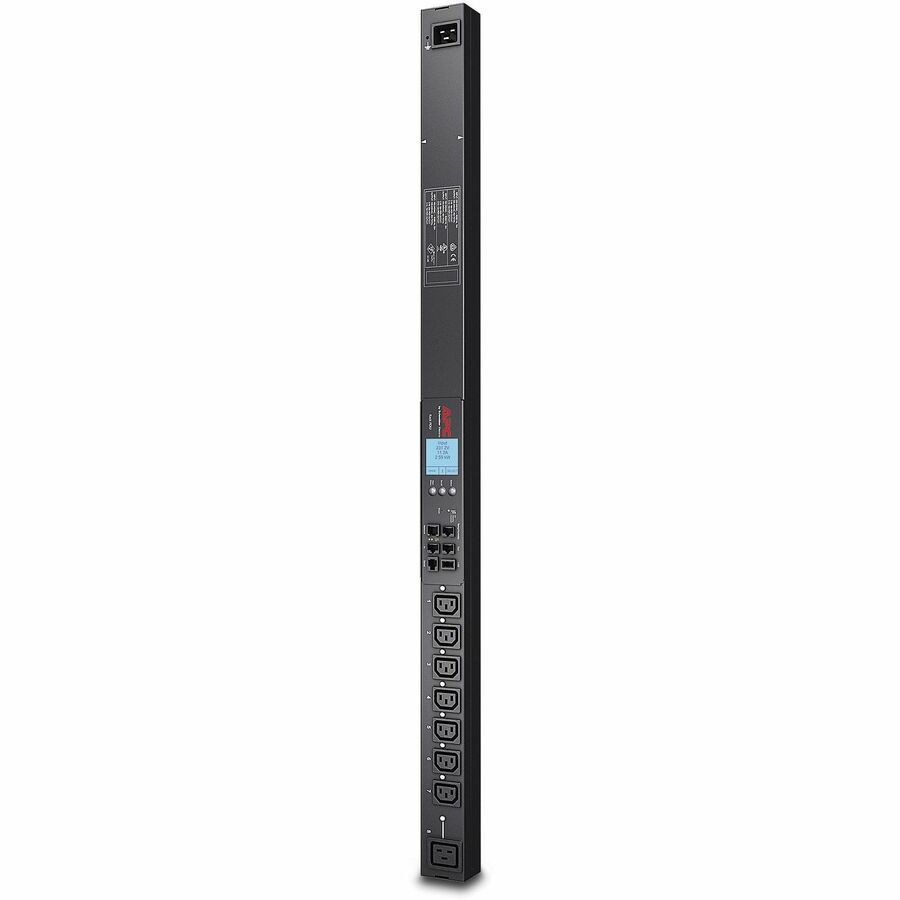

APC NetShelter Switched Rack PDU, 0U, 20A/208V, 16A/230V, 7 C13 and 1 C19 outlets
Switched - IEC 60320 C20 - 200 V, 208 V, 230 V - 0U - Vertical - Rack-mountable - Tower
About This Product
Overview
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
- 1-Year Secure Network Management Card subscription included
- Web/SNMP managed per-outlet switching enables power cycling and access control
- Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
- 0U design maximizes usable rack space for IT equipment
- Locking IEC receptacles and low-profile breakers prevent disconnections
Quick Specifications
- Product Line
- NetShelter
- Product Series
- Switched
- Product Model
- AP8958
- Product Type
- PDU
- PDU Type
- Switched
- Plug/Connector Type
- IEC 60320 C20
- Input Voltage
- 200 V 208 V 230 V
- Output Voltage
- 100 V AC 200 V AC 208 V AC 230 V AC
