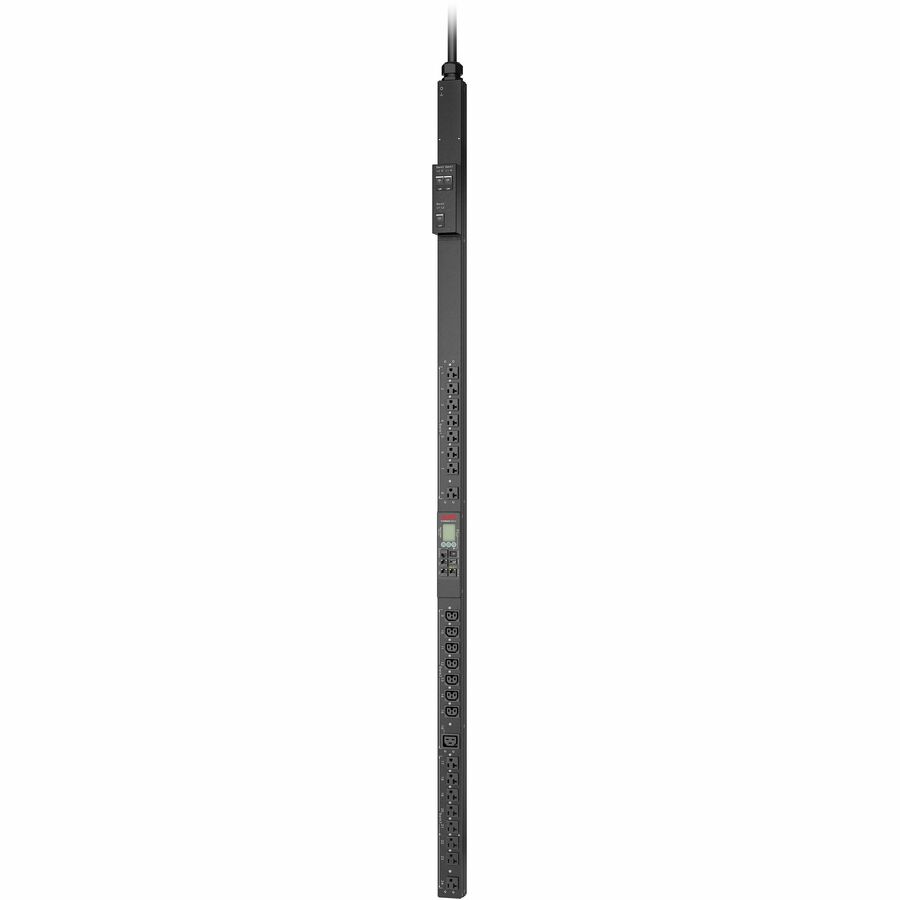

APC NetShelter Switched Rack PDU, 9K series, 0U, 30A, 120/208V, 16 NEMA 5-20R, 7 C13/C15, 1 C19/C21 outlets
Manufacturer: Schneider Electric SA
Mfr. Part: APDU9970
Switched - NEMA L14-30P - 1 x IEC 60320 C19/C21, 7 x IEC 60320 C13/C15, 16 x NEMA 5-20R - 120 V, 208 V - Network (RJ-45) - 9.84 ft Cord Length - 0U - Vertical - Rack-mountable - Tower
About This Product
Overview
It is a switched rack PDU with a maximum current capacity of 30A and an input voltage of 120 and 208V. It includes 16 NEMA 5-20R outlets, 7 C13 and C15 outlets, and 1 C19 and C21 outlet, connected via an NEMA L14-30 plug. The PDU is designed for ZeroU mounting.
- It can handle a maximum power capacity of 6.2kW, suitable for various applications
- Extensive connectivity options
- Designed for ZeroU mounting, it saves rack space and facilitates better cable management
- Supports remote monitoring and control, allowing for efficient power management
Quick Specifications
- Product Series
- 9000
- Product Type
- PDU
- PDU Type
- Switched
- Plug/Connector Type
- NEMA L14-30P
- Receptacle Type
- IEC 60320 C19/C21 IEC 60320 C13/C15 NEMA 5-20R
- Receptacle Detail
- 1 x IEC 60320 C19/C21 7 x IEC 60320 C13/C15 16 x NEMA 5-20R
- Input Voltage
- 120 V 208 V
- Output Voltage
- 120 V AC 208 V AC
