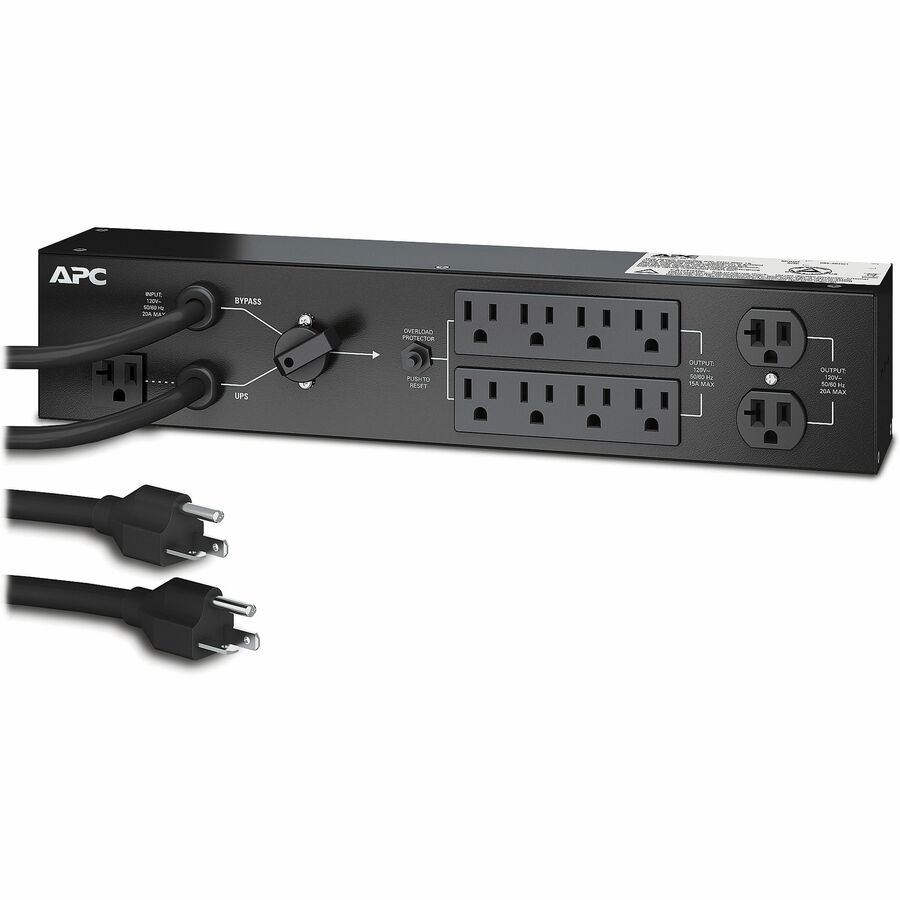

APC Service Bypass PDU, 120V 20AMP W/ (8) NEMA 5-15R AND (2) 5-20R
Manufacturer: Schneider Electric SA
Mfr. Part: SBP2200RM
NEMA 5-20P - 2 x NEMA 5-20R, 6 x NEMA 5-15R - 120 V - 2200 W - Overload Protection - 7.87 ft Cord Length - 2U - Rack-mountable
About This Product
Overview
The APC Service Bypass Panel supports output voltage of 120V. It includes 8 NEMA 5-15R and 2 5-20R outlets. It features a 2U rack-mount design and is rack mountable. It includes rack mounting brackets and a user manual.
- APC SERVICE BYPASS PDU
- Designed to work with the world's most popular network and server UPS
- Bypass/UPS switch allows switching the supply to the load b/w the incoming supply & UPS, to isolate UPS for maintenance
- Includes Rack mounting brackets & User manual
- 2 years repair or replace warranty
Quick Specifications
- Product Model
- SBP2200RM
- Product Type
- PDU
- Plug/Connector Type
- NEMA 5-20P
- Receptacle Type
- NEMA 5-20R NEMA 5-15R
- Receptacle Detail
- 2 x NEMA 5-20R 6 x NEMA 5-15R
- Protection Type
- Overload Protection
- Input Voltage
- 120 V
- Output Voltage
- 120 V AC
