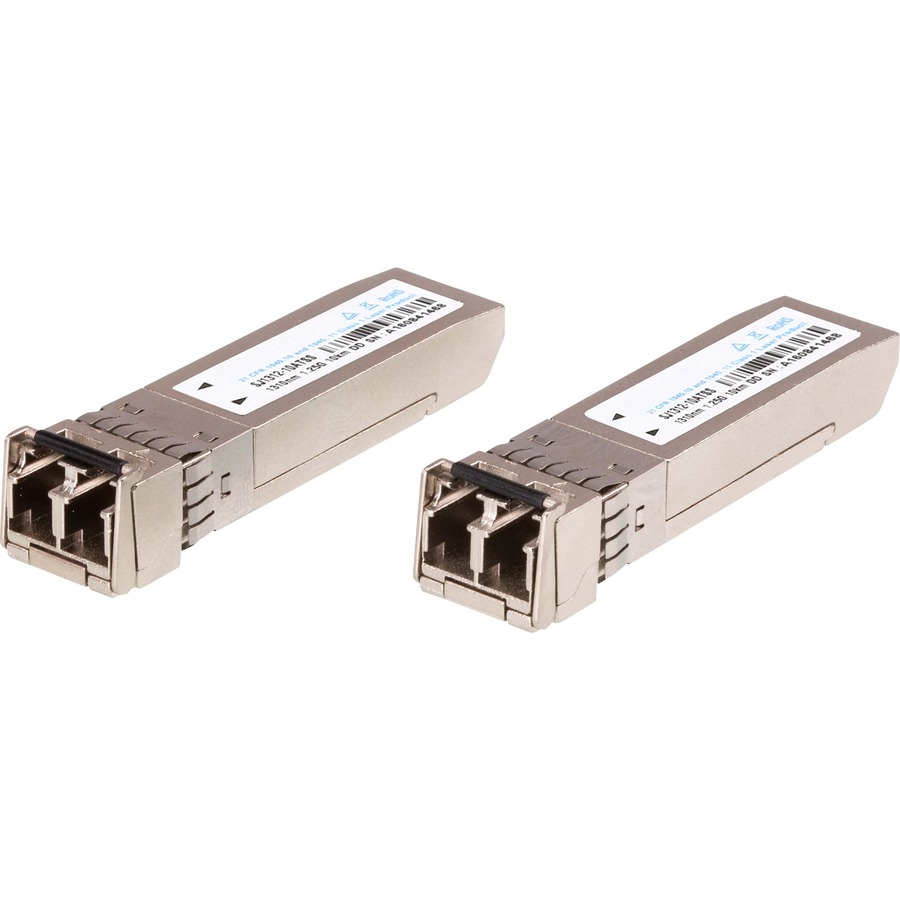

ATEN 10G Multi-Mode/300M Fiber SFP+ Module
For Data Networking, Optical Network - 1 x Duplex 10GBase-X Network - Optical Fiber - Multi-mode - 10 Gigabit Ethernet - 10GBase-X - Hot-pluggable - 2
About This Product
Overview
The 2A-141G 10G Multi-Mode/300M Fiber SFP+ Module is designed for use in 10GbE Ethernet environment that allows you to connect a multi-mode Gigabit Ethernet network cable to a network switch's SFP+ port. The 2A-141G provides 10GbE connectivity at distances up to 300 meters. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-141G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm. This makes the module a cost-effective and highperformance transceiver to substantially increase the span of a compatible network switch.
- Extend your network connectivity up to 300 meters
- Compliant with IEEE 802.3ae standards
- Compliant with SFF-8431 MSA Digital Diagnostic Monitor (DDM)
- Hot pluggable
- Low power consumption
- Operation Temperature from 0° C to 70° C
- RoHS compliant
Quick Specifications
- Product Model
- 2A-141G
- Product Type
- SFP+
- Packaged Quantity
- 2
- Application/Usage
- Data Networking Optical Network
- Total Number of Ports
- 1
- Interfaces/Ports Details
- 1 x Duplex 10GBase-X Network
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
