ATEN Server Interface Module-TAA Compliant
1.64 ft Server Interface Module for Computer, Audio/Video Device, Keyboard/Mouse, KVM Switch, Card Reader, PC - First End: 1 x RJ-45 Network - Female - Second End: 2 x USB Type A - Male, 1 x DisplayPort Digital Audio/Video - Male - Supports up to 1920 x 1200 - 1
About This Product
Overview

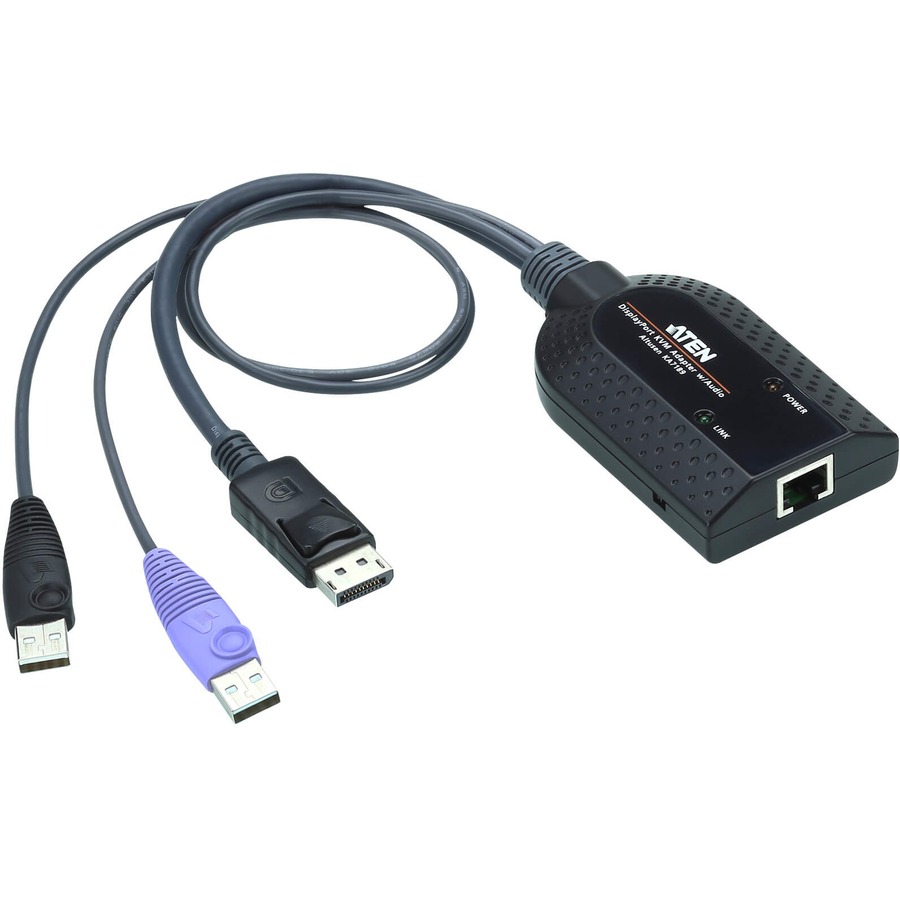

The KA7189 KVM Adapter Cable connects a KVM switch to the DisplayPort video and USB ports of a target computer. The KA7189 supports DisplayPort output and provides two USB plugs to connect a target computer for keyboard/mouse, Virtual Media, or Smart Card/CAC Reader functions.
The KA7189 supports Audio De-Embedder, which extracts the audio from a DisplayPort signal. More advanced features of KA7189 include the small size and lightweight design, as well as superior signal compensation and delay skew technologies for greatly enhanced video quality.
- Connects a KVM switch to the DisplayPort video and USB ports of a target computer*
- Supports Audio De-Embedder
- Auto Signal Compensation (ASC), no DIP switch setting needed for different distances
- Keyboard and mouse emulation - keeps your server functioning smoothly when it's disconnected from the switch's KVM port or is relocated to a different KVM port
- Virtual Media Support**
- Smart Card / CAC Reader Support**
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)***
- Built in ASIC for greater reliability and compatibility
- Compact size
- Firmware upgradeable
Quick Specifications
- Packaged Quantity
- 1
- Product Type
- Server Interface Module
- Cable Length
- 1.64 ft
- Connector Type on First End
- RJ-45 Network - Female
- Connector on First End Details
- 1 x RJ-45 Network - Female
- Connector Type on Second End
- USB Type A - Male DisplayPort Digital Audio/Video - Male
- Connector on Second End Details
- 2 x USB Type A - Male 1 x DisplayPort Digital Audio/Video - Male
- Device Supported
- Computer Audio/Video Device Keyboard/Mouse KVM Switch Card Reader PC
