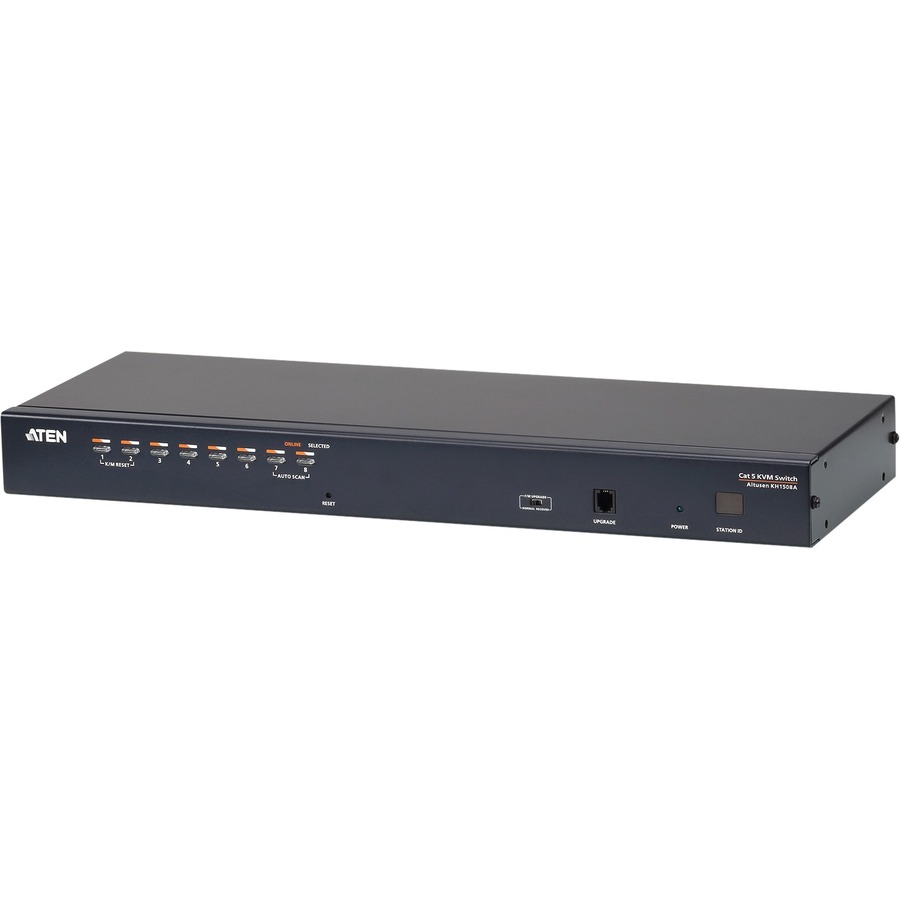

ATEN KH1508A KVM Extender
Manufacturer: ATEN Technology, Inc
Mfr. Part: KH1508A
8 Computer(s) - UXGA - 1600 x 1200 Maximum Video Resolution - 8 x Network (RJ-45) - 2 x PS/2 Port - 1 x VGA - 110 V AC, 220 V AC Input Voltage - Rack-mountable - 1U
About This Product
Overview
The KH1508A differs from the KH1508 in that the A release uses CPU modules with a permanent CAT5 cable molded into a single unit, and the console port now supports any combination of PS/2 and USB keyboards and mice
It allows access to eight directly connected computers, and through a daisy chain connection, an additional 31 KVMs to control a total of 256 computers from a single console.
- One KVM console control up to 8 directly connected computers
- Space-Saving RJ-45 connectors and Cat 5e/6 cabling
- By daisy chaining up to 31 additional KH1508A switches, as many as 256 computers can be controlled from the original KVM console
- Console conversion - any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
- Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters*
- Configue port access rights for users on a port - by - port basis
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
- Multiplatform support - PC, Mac, Sun, and serial
- Multiple User Accounts - Supports up to 10 user and 1 administrator accounts
- Two-Level Password Security - Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
Quick Specifications
- Product Model
- KH1508A
- Product Type
- KVM Extender
- Connectivity Technology
- Wired
- KVM Technology
- Analog
- Number of Computers Supported
- 8
- Graphic Mode
- UXGA
- Maximum Video Resolution
- 1600 x 1200
- Network (RJ-45)
- Yes
