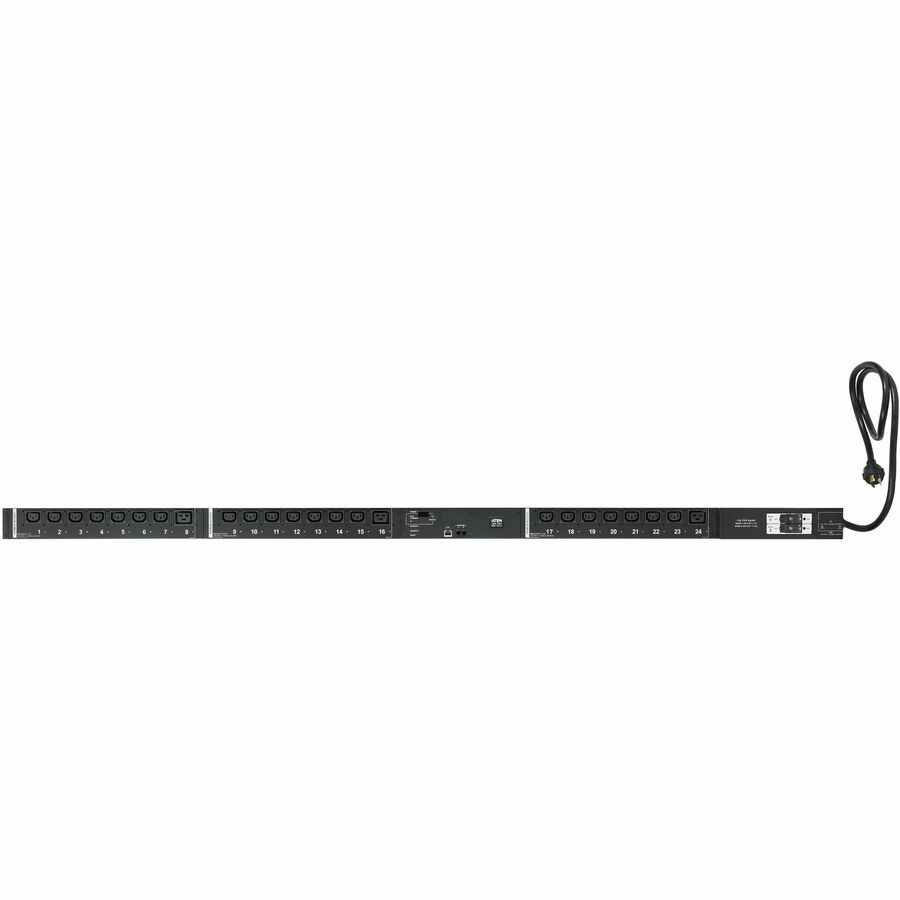

ATEN eco PE6324LB 24-Outlets PDU
Switched with Metered-by-Outlet - NEMA L6-30P - 21 x IEC 60320 C13, 3 x IEC 60320 C19 - 120 V AC, 230 V AC - Overload Protection, Double Pole - Network (RJ-45) - 5.25 ft Cord Length - 0U - Rack-mountable
About This Product
Overview
Low Profile eco PDU | PE6324L
The PE6324L PDUs are low-profile units featuring 24 AC outlets, coming available in various IEC or NEMA socket configurations. This series has a smaller input region on the PDU to provide more installation space for data centers.
The PE6324L eco PDUs offers remote power control with real-time power measurement - allowing users to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP / IP connection. The power status of each outlet can be set individually, allowing users to switch each device On / Off.
This series supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN eco DC (Energy & DCIM Management Web GUI), delivering an easy method for multiple device management while offering an intuitive and user-friendly GUI that allows users to configure a PDU device and monitor power status of the equipment connected to it.
- Connections: Supports 10 / 100 Mbit Ethernet Interface - Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3 - Supports 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIUS - Supports eco DC, Browser (IE, Firefox, Chrome, and Safari)
- Metering: Bank level power metering and monitoring - Environment monitoring : supports external temperature / temperature & humidity sensors for rack temperature and humidity monitoring - Allows for current, voltage, power, power dissipation, temperature, and humidity metering and threshold level settings
- Outlet Switch Control: Remote power outlet control ( On / Off / Power Cycle) by individual outlets and outlet groups - Supports multiple power control methods - Wake on LAN, System After AC Back, and Kill the Power - Power-On sequencing - users can set the power on sequence and delay time for each outlet to allow equipment to be turned on in the proper order - Proactive Overload Protection (POP) - automatically powers off outlets when current overloads to protect operating devices
Quick Specifications
- Product Line
- eco PDU
- Product Model
- PE6324LB
- Product Type
- PDU
- PDU Type
- Switched with Metered-by-Outlet
- Plug/Connector Type
- NEMA L6-30P
- Receptacle Type
- IEC 60320 C13 IEC 60320 C19
- Receptacle Detail
- 21 x IEC 60320 C13 3 x IEC 60320 C19
- Protection Type
- Overload Protection Double Pole
