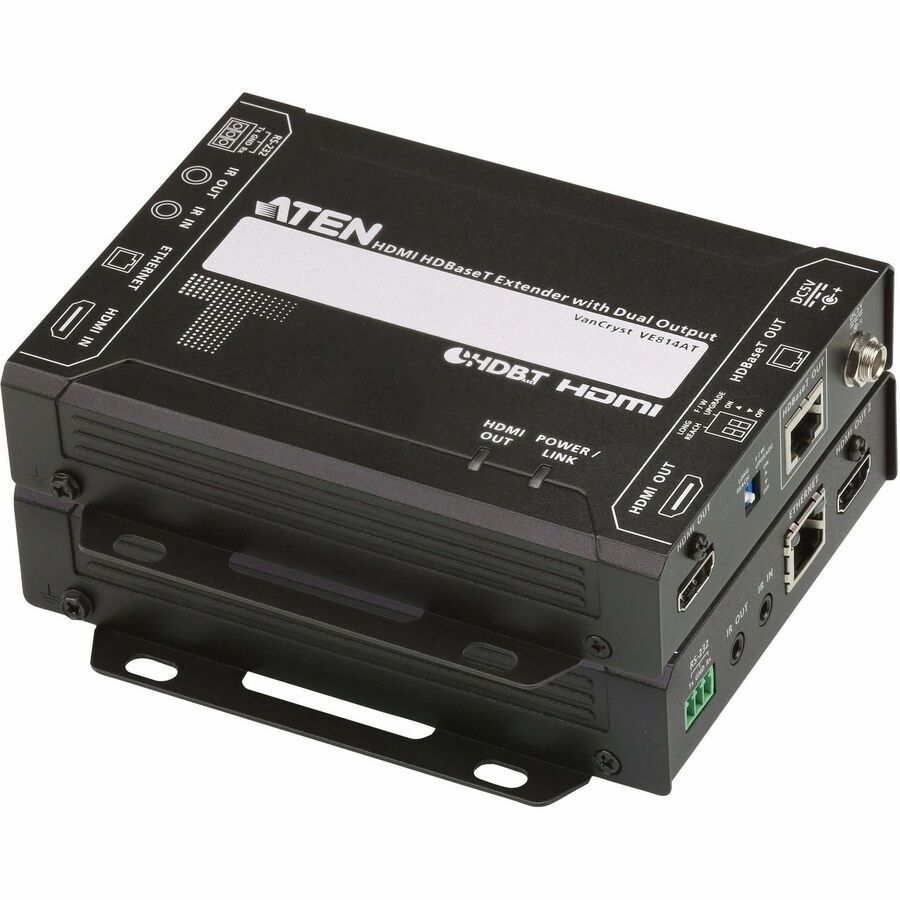

ATEN HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)
1 Input Device - 1 Output Device - 492.13 ft Range - 4 x Network (RJ-45) - 1 x HDMI In - 3 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable
About This Product
Overview
ATEN VE814A is an HDBaseT Video Extender that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814A can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant extender meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.
The VE814A supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814A is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
- Video Extender Transmitter/Receiver provides efficient and feasible audio/video transmission, decoding, and extending
- 4096 x 2160 maximum video resolution for a spectacular, sharp display with added reliability
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- The VE814A video extender transmitter/receiver provides plenty of freedom with wired connectivity
- 1 input devices supported to better accommodate your specific requirements
- 1 output devices supported for maximum feasibility and usage convenience
- 492.13 ft maximum operating distance for feasible operation and optimal coverage
- 4K graphics mode for stunning, lively video quality
- Rack-mountable video extender transmitter/receiver allows a clutter-free, convenient coding/decoding with increased efficiency
Quick Specifications
- Product Line
- VanCryst
- Product Model
- VE814A
- Product Type
- Video Extender Transmitter/Receiver
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 492.13 ft
- Graphics Modes
- 4K
