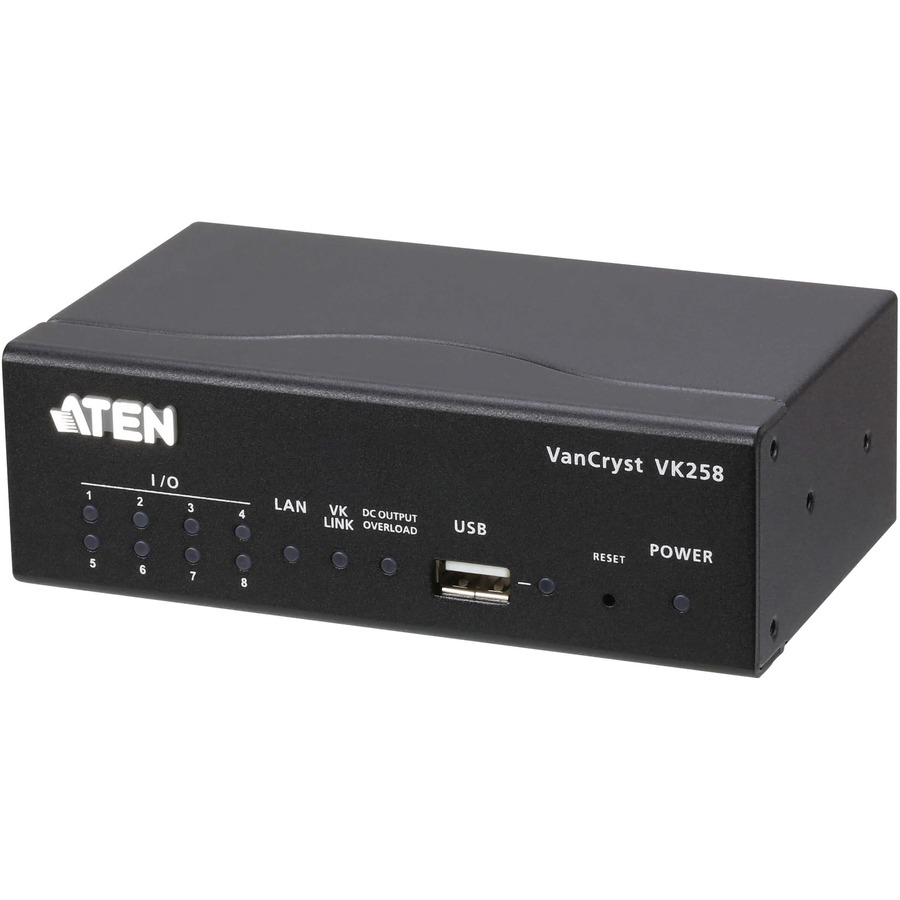

VanCryst VK258 8-Channel Digital I/O Expansion Box
Manufacturer: ATEN Technology, Inc
Mfr. Part: VK258
1.7" Height x 3" Width - Metal
About This Product
Overview
The VK258 8-Channel Digital I/O Expansion Box provides an additional eight channels of digital input/output for a flexible expansion of the ATEN Control System. This allows users to control more digital I/O devices, such as various sensors, dry contact devices, PCs, and motor-driven devices in environments where more devices need to be centrally controlled. With the advantage of the Ethernet-based connection, the expansion box easily connects to the ATEN Controller via a LAN connection from different locations across a network.
- Provides 8 Digital I/O channels to expand the ATEN Control System
- Up to eight VK258 expansion boxes can be added to a single ATEN Controller
- Flexible Deployment - connects to an ATEN Controller via an Ethernet connection
- ID Switch pairs the VK258 with a controller to instantly configure the network settings
- One DC output allows you to power I/O or other low-voltage devices that require an extra power supply
- Supports Power over Ethernet (PoE) or DC power supply
- Firmware upgradable through USB, firmware upgrade tool, or web interface
Quick Specifications
- Product Line
- Professional
- Product Model
- VK258
- Product Type
- Digital I/O Expansion Box
- Product Material
- Metal
- Height
- 1.7"
- Width
- 3"
- Weight (Approximate)
- 1.01 lb
- Application/Usage
- PC Sensor
