ATEN VM8814 4-Port 4K HDMI Output Board with Scaler
4-port HDMI Output Board that is compatible with the ATEN VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility. continuous video streams, real-time switching, and stable signal transmissions
About This Product
Overview

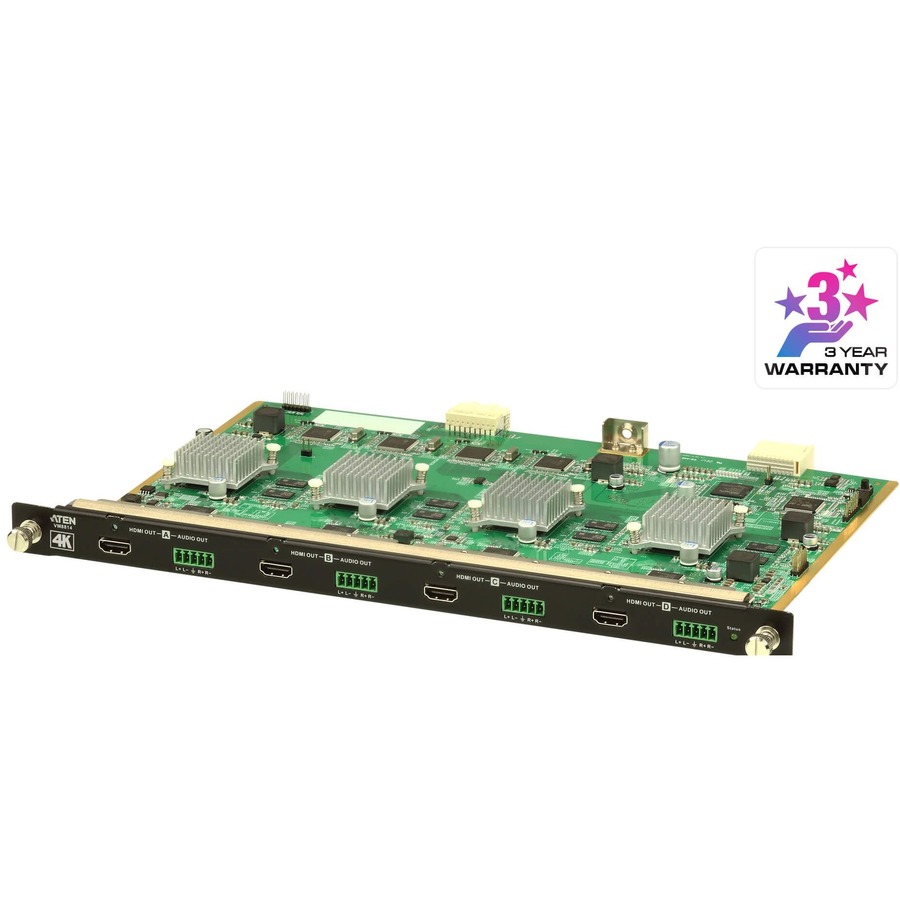

The VM8814 is a 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals, the VM8814 is equipped with 4 stereo audio output ports that allow HDMI audio extraction.
Considering the need for fast video switching and resolution adaptation in video wall applications, the VM8814 supports Seamless Switch™ and EDID Expert™ that make real-time video switching possible, and contains a built-in 4K scaler that handles different video resolutions. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
- Compatible with the VM1600 / VM3200; mix and match with modular I/O boards of any type for optimum flexibility
- 4K Scaler -features a video scaling function to convert input resolutions to the optimum display resolutions
- Seamless Switch™ -features close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions*
- FrameSync -prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
Quick Specifications
- Product Series
- VM
- Product Model
- VM8814
- Packaged Quantity
- 1
- Product Type
- HDMI Output Module
- Product Material
- Metal
- Material Details
- Metal - Housing
- Form Factor
- Rack-mountable
- Height
- 0.92"
