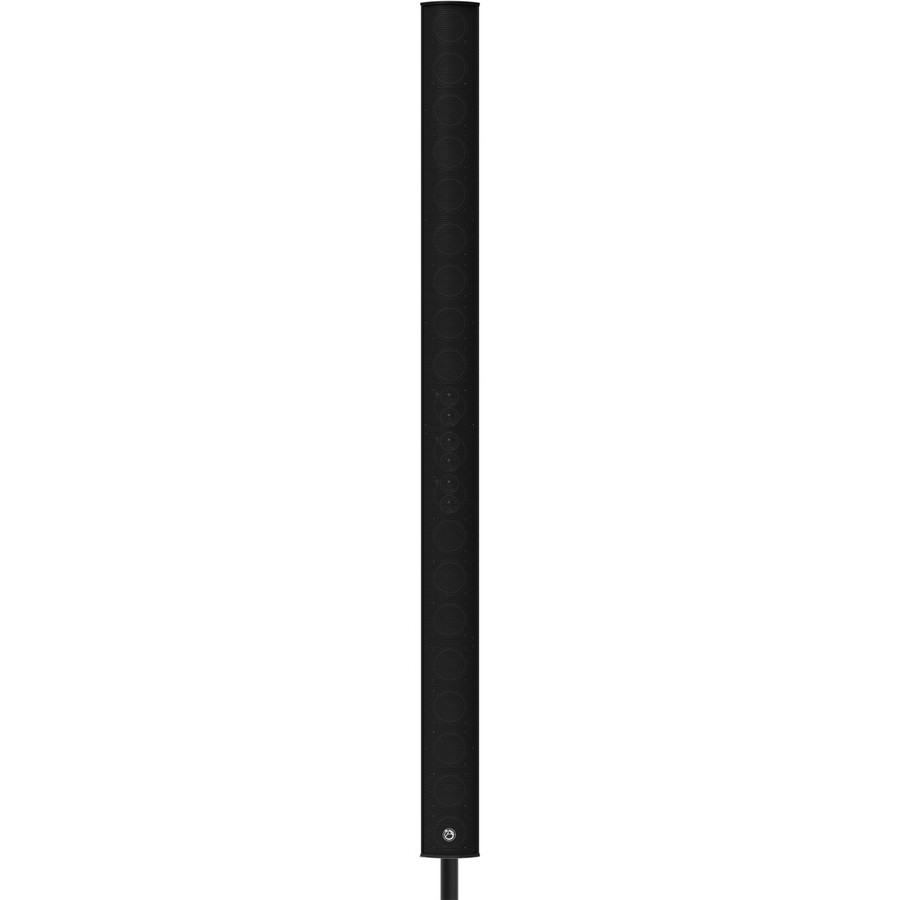

AtlasIED Line Array ALA20T Wall Mountable Speaker - 500 W RMS - Black
1000 W (PMPO) Woofer - 0.87" Aluminum Tweeter - 110 Hz to 20 kHz - 8 Ohm

About This Product
Overview
The ALA20T column line array loudspeaker delivers maximum pattern control performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA20T's transducer configuration combines twenty tight packed 3" full range drivers and six 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with a portable A-Line subwoofer system.
- Use In Fixed Install or Portable Applications
- 40° Vertical Coverage
- 135° Horizontal Coverage
- 70.7V or 8? Operation
- Twenty (20) Proprietary 3" Full Range Transducers
- Six (6) High Frequency Tweeters
- Barrier Strip and NL-4 Terminals
- Lightweight Aluminum Housing
- IP32 Weather Rating
- Available In Black or Neutral Finish
Quick Specifications
- Product Line
- Line Array
- Product Model
- ALA20T
- Product Type
- Speaker
- RMS Output Power
- 500 W
- PMPO Output Power
- 1000 W
- Tweeter Driver Size
- 0.87"
- Tweeter Driver Material
- Aluminum
- Full Range Driver Size
- 3"
