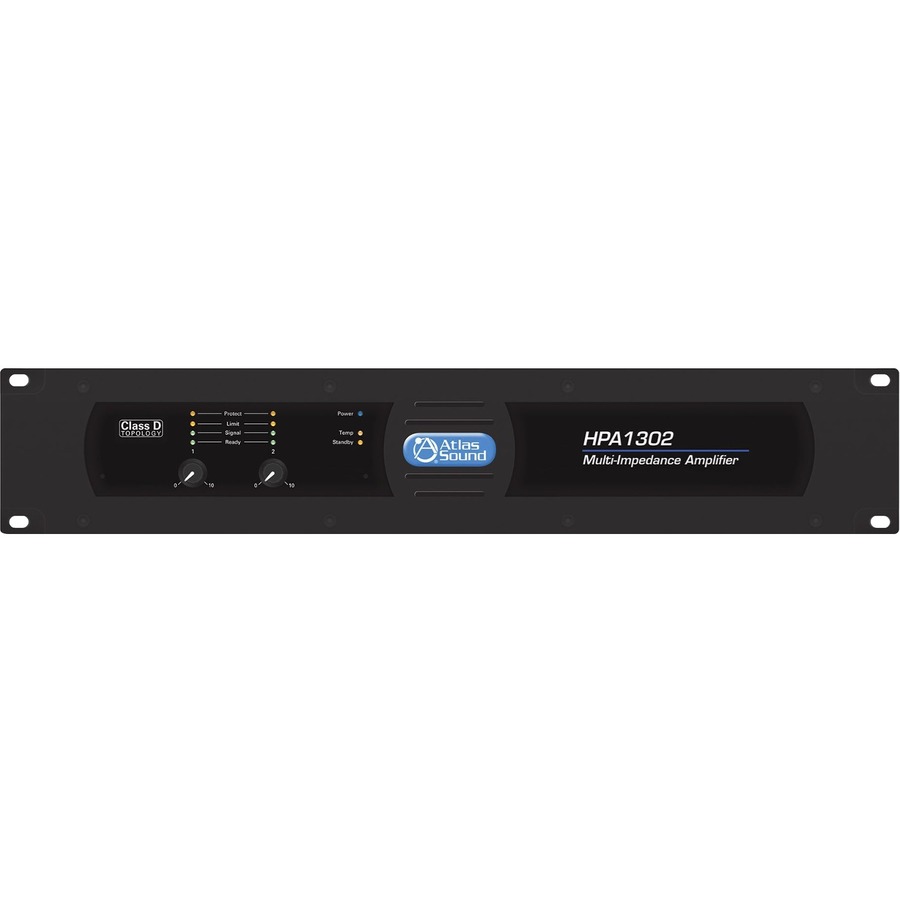

AtlasIED HPA1302 Amplifier - 1300 W RMS - 2 Channel - Black
Manufacturer: AtlasIED
Mfr. Part: HPA1302
20 Hz to 20 kHz - 1000 W

About This Product
Overview
The AtlasIED High Power Amplifier HPA Series model HPA1302 has been designed to be used in both commercial 70V/100V distributed systems and professional applications that require amplifiers to handle 8Ω and 4Ω loads.
The HPA Series features Generation II Class D Output topology that provides superior efficiency with the sound quality of a Class AB amplifier. The power supply is a switch mode wide range design that maintains a stable output during fluctuating power conditions. The power supply and output stage collectively are designed to deliver exceptional dynamic high output voltage and current to virtually any loudspeaker load.
The HPA Series features front panel stepped level controls with a security cover, remote turn on, balanced line inputs with sensitivity settings, fault reporting and an accessory card slot for an optional Dante™ two-channel digital audio interface. Cooling is not an issue because of the unique output stage low resistance direct couple thermal transfer design. HPA also is energy efficient and meets Energy Star 1W standby mode standards.
Whether the application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED HPA Series is the answer for high power/cost effective reliable amplification requirements.
The HPA Series features Generation II Class D Output topology that provides superior efficiency with the sound quality of a Class AB amplifier. The power supply is a switch mode wide range design that maintains a stable output during fluctuating power conditions. The power supply and output stage collectively are designed to deliver exceptional dynamic high output voltage and current to virtually any loudspeaker load.
The HPA Series features front panel stepped level controls with a security cover, remote turn on, balanced line inputs with sensitivity settings, fault reporting and an accessory card slot for an optional Dante™ two-channel digital audio interface. Cooling is not an issue because of the unique output stage low resistance direct couple thermal transfer design. HPA also is energy efficient and meets Energy Star 1W standby mode standards.
Whether the application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED HPA Series is the answer for high power/cost effective reliable amplification requirements.
- 4?, 8?, 70.7V, & 100V Operation
- Balanced Inputs Euro Block Phoenix Style Connector
- Accessory Card Slot for Optional Dante™ Digital Network Audio Card
- Short-Circuit, Temperature, and DC Offset Protection
- Auto Sensing 100V-240V~ AC Mains Power Supply
- Stepped Attenuators with Security Covers
Quick Specifications
- Product Series
- HPA
- Product Model
- HPA1302
- Product Type
- Amplifier
- Minimum Frequency Response
- 20 Hz
- Maximum Frequency Response
- 20 kHz
- Impedance
- 4 Ohm
- Classification
- D
- Audio Channels
- 2
