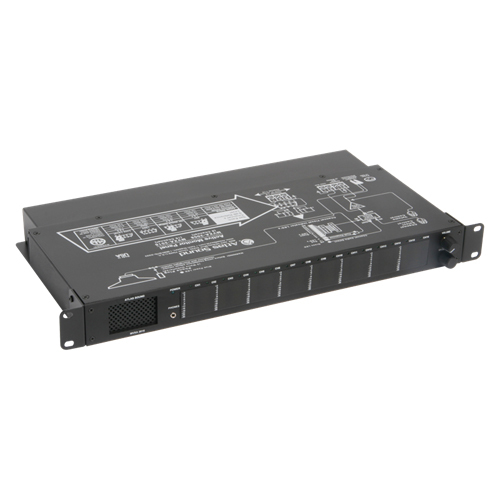

AtlasIED MVXA-2016 16 Channel Active Audio Monitor Panel
Manufacturer: AtlasIED
Mfr. Part: MVXA-2016
1.8" Height x 19" Width
About This Product
Overview
Atlas-Sound's MVXA-2016 monitor panel is an active device for aural and visual monitoring of sixteen different speaker and line level circuits in any combination. Superior single-circuit board design offers outstanding performance with easy visual assessment in an ultra-thin single rack unit chassis.
The MVXA-2016 sixteen channel monitor panel is equipped with the finest components including DC coupled capacitors at each input to maintain signal integrity without distortion, noise, or ground-loop occurrence (no transformer required).
- A 12 Segment LED Meter for Each Channel Provides Accurate Visual Monitoring of all Channels Simultaneously
- An Internal Speaker, Headphone Jack, Line Level Output, and an External Speaker Output are Available for Versatile Aural Monitoring of Each Channel
- Each Meter Can be Individually Referenced to Line Level (1Vrms), 25Vrms, 70Vrms, or 100Vrms Input to Collectively Monitor Multiple Signal Types in any Combination
- Green LED's Indicate Standard VU Ballistics of -30 to -2dB, Red LED's indicate Peak Response at 0 to +3dB Above Reference Level LED's indicate Peak Response at 0 to +3dB Above Reference Level
- Sophisticated Electronic Design Achieves 8 or 16 Channel Audible & Visual Monitoring in a Single Rack Space
- Top Panel Diagram Depicts Functional Operation and Jumper Settings for Easy Installation and Service
Quick Specifications
- Product Model
- MVXA-2016
- Product Type
- Monitor Panel
- Height
- 1.8"
- Width
- 19"
- Weight (Approximate)
- 7.05 lb
- Country of Origin
- Taiwan
