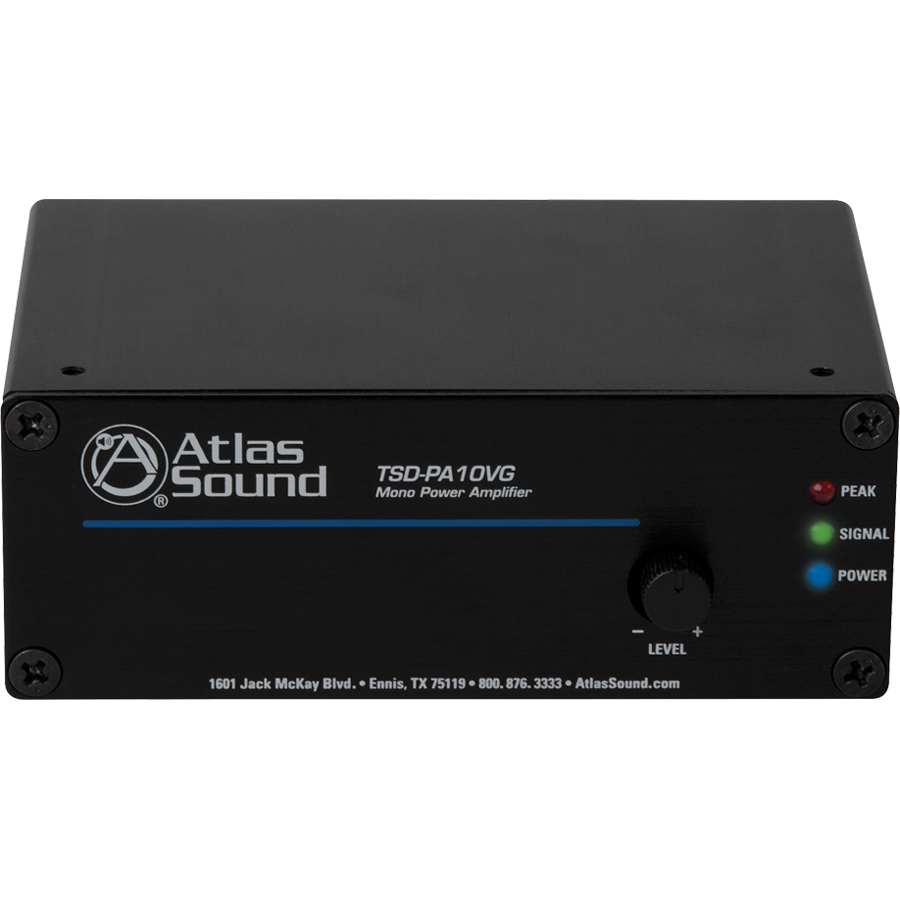

AtlasIED TSD-PA10VG Amplifier - 10 W RMS - 1 Channel - Black
0.5% THD - 40 Hz to 20 kHz - 14 W
About This Product
Overview
The TSD-PA10VG is a cost effective mono amplifier for 4Ω and distributed constant voltage speaker systems. Applications such as house of worship cry rooms, restrooms, and foyers will benefit from this compact reliable amplifier. The TSD-PA10VG is also a good alternative for small projector systems as it can be used with as many as (8) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting.
For sound masking applications the TSD-PA10VG has the capacity to drive up to 17 masking speakers tapped at .5W each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob to facilitate installation of a tamper resistant cover (included).
- Increases the strength of a weak electrical signal without affecting other characteristics
- Hear your music in crisp detail with 20 kHz maximum frequency
- Smartly manages power at 4 Ohm impedance to execute sound flow. So Indulge yourself in HQ audio output!
- Features 1 audio channel with 10 W RMS output power
Quick Specifications
- Product Model
- TSD-PA10VG
- Product Type
- Amplifier
- Minimum Frequency Response
- 40 Hz
- Maximum Frequency Response
- 20 kHz
- Total Harmonic Distortion (THD)
- 0.5%
- Impedance
- 4 Ohm
- Audio Channels
- 1
- RMS Output Power
- 10 W
