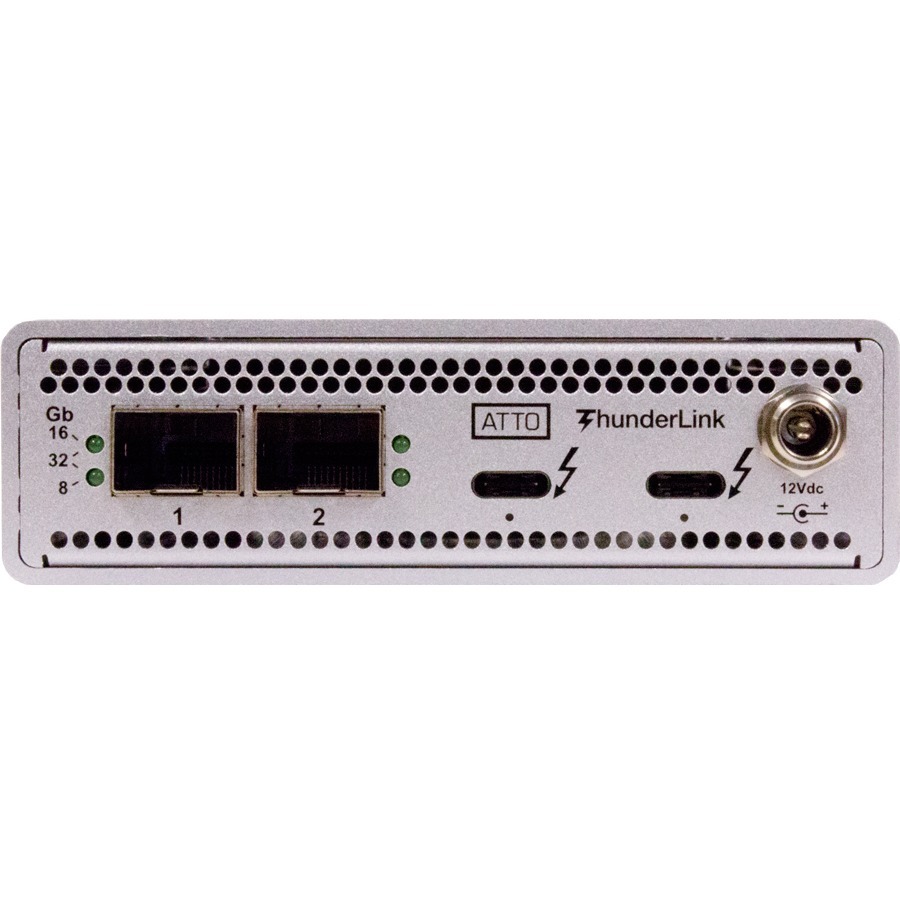

ATTO 40Gb/s Thunderbolt 3 (2-port) to 32Gb/s FC (2-port) (Includes SFPs)
Manufacturer: Atto Technology
Mfr. Part: TLFC-3322-D00
Thunderbolt 3 - 40 Gbit/s, 32 Gbit/s - 2 x Total Fibre Channel Port(s) - 2 x LC Port(s) - 2 x Total Expansion Slot(s) - SFP+ - External
About This Product
Overview
The ATTO ThunderLink® FC 3322 acts as an external Thunderbolt 3 to Fibre Channel adapter, connecting Thunderbolt enabled workbooks and mobile workstations to the latest 32Gb/s Fibre Channel networks and storage devices. With dual channel configurations, the 32Gb/s Fibre Channel ThunderLink® is an ideal solution providing support for failover and load balancing through ATTO's exclusive MultiPath Director. With the combined power of Thunderbolt 3 and ATTO's time-tested history with Fibre Channel users can achieve the highest I/O and data throughput for advanced video and access to IT applications.
- Able to achieve maximum line rate of Thunderbolt 3
- Two optical SFP+ LC modules included
- US model: includes 110V power cord
- EU model: includes CEE 7/7 (SHUKO) power cord and BS 1363 UK10 power cord
- Dual port 40Gb/s Thunderbolt 3 with DisplayPort and device daisy-chain support
- Exclusive Advanced Data Streaming (ADS™) Technology
- Auto negotiation to 32Gb, 16Gb and 8Gb devices
- Supports Windows® 10, 8.1, 7
- ATTO ConfigTool™, a Graphical User Interface, for customized performance settings
- 3-year standard product warranty
Quick Specifications
- Product Model
- TLFC-3322-D00
- Product Type
- Thunderbolt/Fibre Channel Host Bus Adapter
- Total Number of Fibre Channel Ports
- 2
- Number of LC Ports
- 2
- Host Interface
- Thunderbolt 3
- Data Transfer Rate
- 40 Gbit/s 32 Gbit/s
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP+
