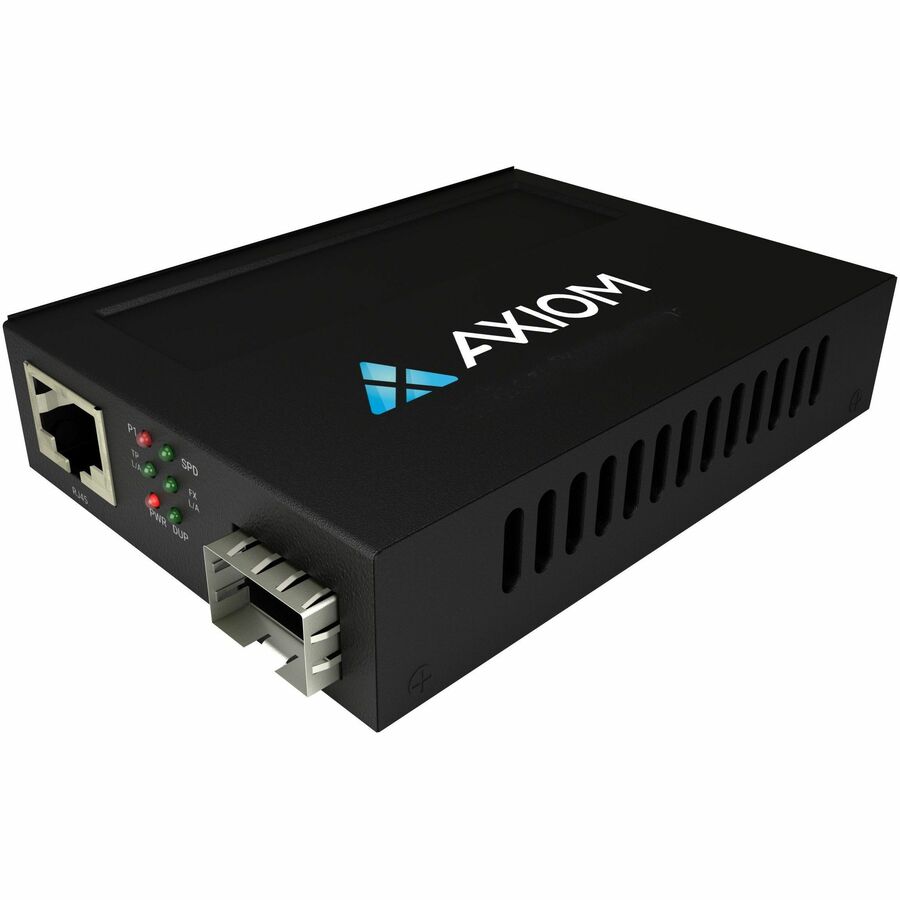

Axiom TAA 1Gbs POE+ RJ45 to SFP Fiber Media Converter - Open SFP Port
Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1310 nm, 1550 nm, 850 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X, 10/100/1000Base-TX, 1000Base-FX, 1000Base-SX, 1000Base-LX, 1000Base-EX, 1000Base-ZX - 1 Gbit/s - 80 km - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - Power Supply - External - TAA Compliant
About This Product
Overview
The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
Features:
- 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
- IEEE802.3at PoE+ PSE compatible
- Built-in AC/DC power supply
- Over-current protection
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Connect different types of media within a network with this single port
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- No hassle of internal installation, install externally
Quick Specifications
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Number of PoE+ (RJ-45) Ports
- 1
- PoE Port Type
- PSE
- Media Type Supported
- Twisted Pair Optical Fiber
- Fiber Optic Cable Wavelength
- 1310 nm 1550 nm 850 nm
- Maximum Data Transfer Rate
- 1 Gbit/s
