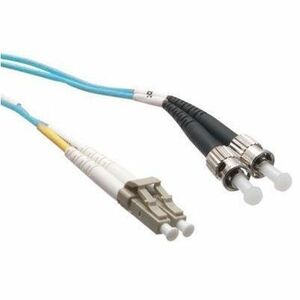

Axiom LC/ST Multimode Duplex OM4 50/125 Fiber Optic Cable 50m - TAA Compliant
164.04 ft Fiber Optic Network Cable for Network Device - First End: 2 x LC/UPC Network - Male - Second End: 2 x ST/UPC Network - Male - 100 Gbit/s - OFNR - Duplex - Aqua - TAA Compliant
About This Product
Overview
Attain optimal performance with Axiom OM4 laser-optimized multimode fiber patch cables. Axiom OM4 Fiber Optic Cables answer the call for increased bandwidth requirements used in cost-effective multi-mode systems. OM4 Cable provides an opportunity to future-proof cabling and networking infrastructure delivering increased bandwidth for next-generation 40 and 100Gb/s applications.
Axiom OM4 is completely backward compatible with existing OM3 applications. OM4 Cable is laser-optimized high bandwidth 50um multimode fiber, has a more stringent test specification, and provides an additional layer of performance that supports 10Gb, 40Gb, and 100Gb applications at longer distances.
Product Features:
- Multimode Duplex Fiber Optic Cable 50/125, OM4, Aqua
- OM4 Compliance: Effective Modal Bandwidth >= 4700 MHz-Km
- Enabling 40/100 Gb/S Parallel Transmission Concepts
- (2) LC/UPC Connectors On One Side, (2) ST/UPC Connectors On Other
- All Connectors Have Ceramic Ferrules
- Duplex Clips LC Side
- Bend Insensitive
- Bending radius 10mm
- PVC (OFNR) Rated Aqua Jacket With Corning Glass
- Maximum Attenuation - (dB/Km) 3.0/1.0
- Wavelength (nm) 850/1300
- Jacket OD: 1.8mm
- Long Term Tensile Strength: 150n
- Long Term Crush Resistance: 200n/100mm
- Operating Temperature: -40° C To +70° C
- Color: Aqua
Quick Specifications
- Product Type
- Network Cable
- Cable Type
- Fiber Optic
- Fiber Optic Mode
- Multi-mode
- Fiber Type
- Duplex
- Fiber Optic Cable Core/Cladding Specification
- 50/125 µm
- Fiber Category
- OM4
- Cable Length
- 164.04 ft
- Connector Type on First End
- LC/UPC Network - Male
