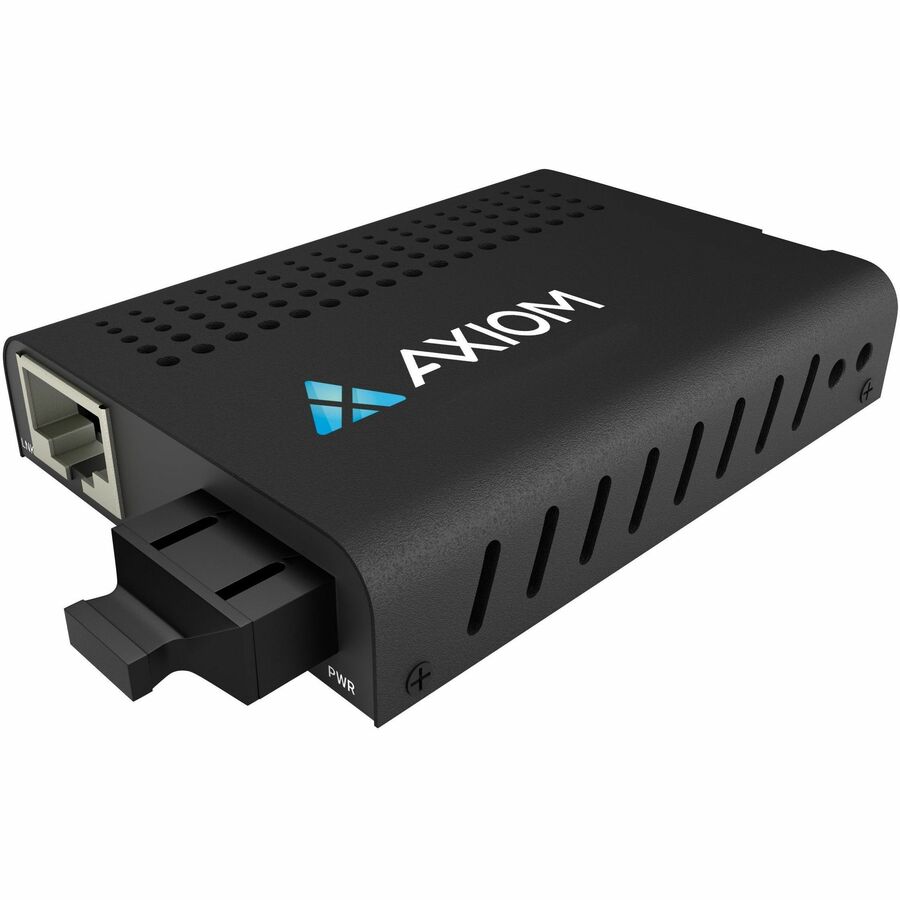

Axiom Transceiver/Media Converter
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-SX - 0.55 km - DC - Compact, Standalone - TAA Compliant
About This Product
Overview
The Axiom Mini 10/100/1000Base-TX to 100/1000Base-FX Media Converter Series is a Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100/1000Base-TX ports and 100/1000Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.
- Unit and Port LEDs allow for quick status information
- Auto-Negotiation
- Full-Duplex or Half-Duplex Operation Modes
- Auto-MDI/MDIX
- Automatic Link Restoration
- Connect to legacy network equipment
- Eliminate Collision Domains
- 10/100/1000Base-TX UTP to 1000Base-FX Fiber media convertion
- Supports IEEE802.3U IEEE802.3z 1000Base-TX/FX protocols , IEEE802.3ab standards
- Available with Open SFP Port or optional built in LC/SC/ST Connections
- DIP switch to set different configurations
- Compact package size
- Supports IEEE802.3x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
- Compact Transceiver/Media Converter can be conveniently placed anywhere to ensure maximum space-efficiency
Quick Specifications
- Product Line
- Mini
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of SC Ports
- 1
- SC Port Type
- Duplex
- Media Type Supported
- Twisted Pair Optical Fiber
