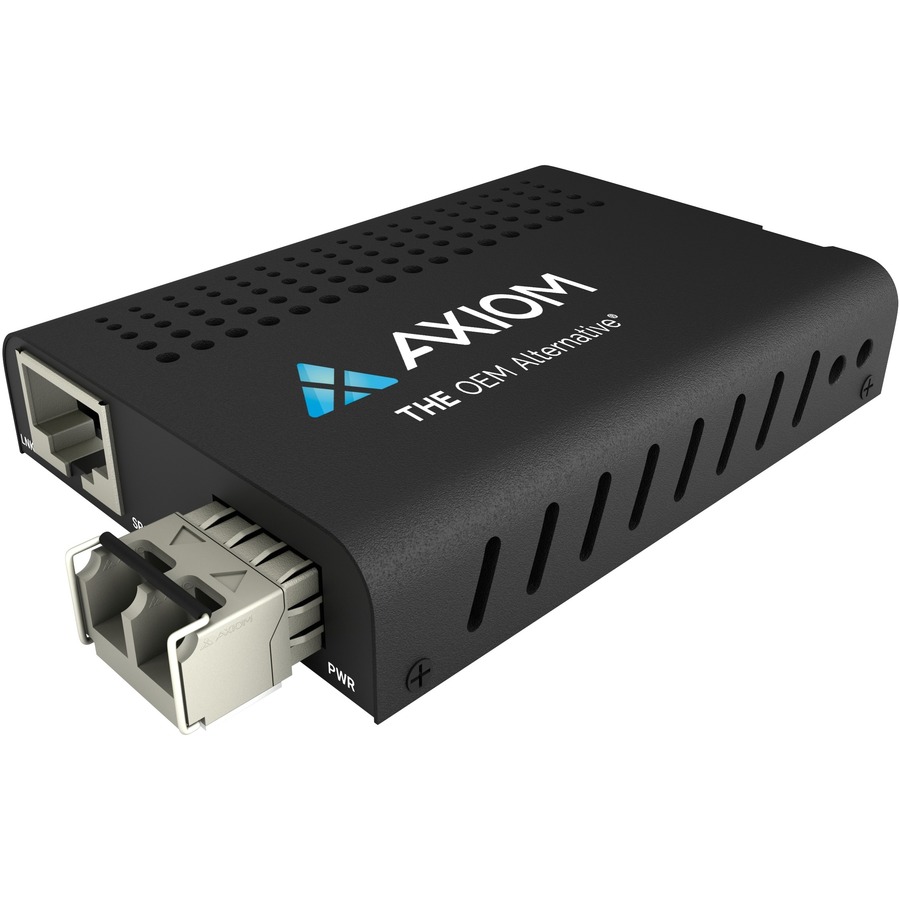

Axiom Transceiver/Media Converter
Manufacturer: Axiom Memory Solutions
Mfr. Part: MC01-M3L2-AX
1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Multi-mode - 1310 nm Fiber - Fast Ethernet - 100Base-FX, 10/100Base-TX - 2 km - DC
About This Product
Overview
Features
The Axiom Mini 10/100Base-TX to 100Base-FX Media Converter Series is a Fast Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100Base-TX ports and 100Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.
- Unit and Port LEDs allow for quick status information
- Auto-Negotiation
- Full-Duplex or Half-Duplex Operation Modes
- Auto-MDI/MDIX
- Automatic Link Restoration
- Connect to legacy network equipment
- Eliminate Collision Domains
- 10/100Base-TX UTP to 100Base-FX fiber media convertion
- Support IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX standards
- Available with Open SFP Port or optional built in LC/SC/ST Connections
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support
- Compact package size
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With 100Base-FX technology get up to 100Mbps data transfer rate over optical fiber cable
Quick Specifications
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of LC Ports
- 1
- LC Port Type
- Duplex
- Number of Network (RJ-45) Ports
- 1
- Media Type Supported
- Optical Fiber Twisted Pair
- Fiber Mode Supported
- Multi-mode
