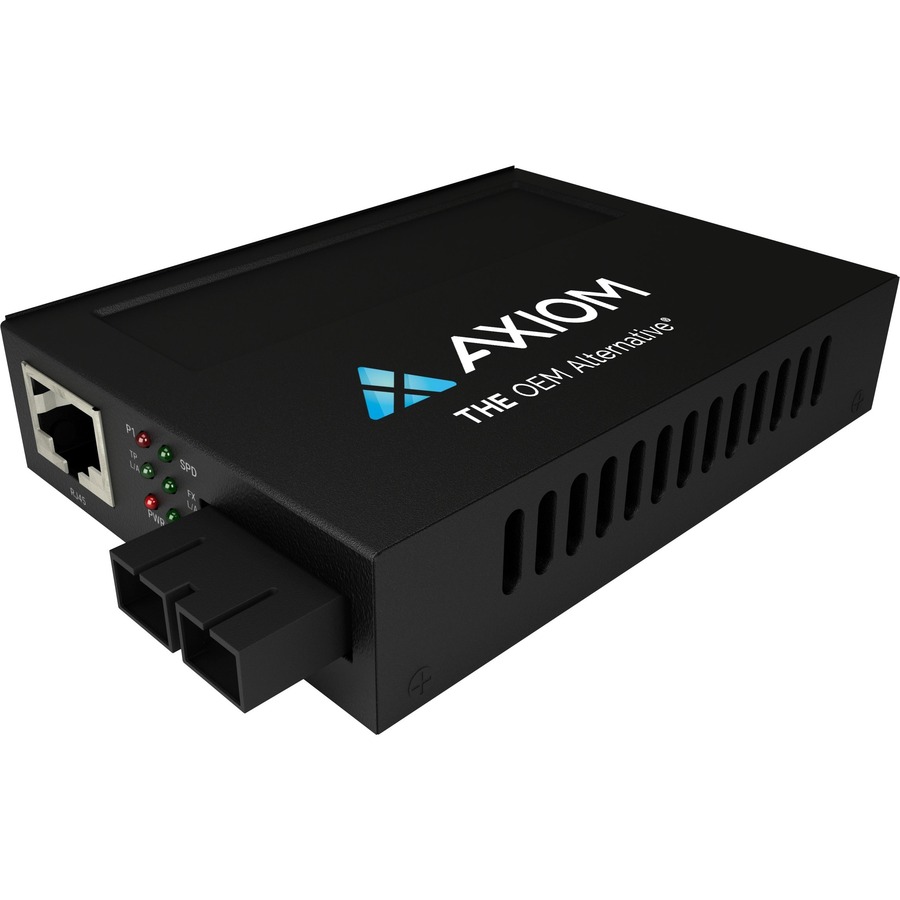

Axiom 100Mbs POE RJ45 to 100BASE-FX Fiber Media Converter - MMF, SC, 2km, 1310nm
Manufacturer: Axiom Memory Solutions
Mfr. Part: MCP31-F1-M3S2-AX
Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - Multi-mode - 1310 nm Fiber - Fast Ethernet - 100Base-FX - 2 km - AC/DC
About This Product
Overview
Features
The Axiom 100Mbps POE (PSE) Series are a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
Features:
- 10/100Base-TX UTP to 100Base-FX fiber media conversion
- IEEE802.3af PoE PSE compatible
- Built-in AC/DC power supply
- Over-current protection
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- Expand your network capabilities with this 2 transceiver/media converter
- With 100Base-FX technology get up to 100Mbps data transfer rate over optical fiber cable
Quick Specifications
- Product Series
- POE (PSE)
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of PoE (RJ-45) Ports
- 1
- PoE Port Type
- PSE
- Number of SC Ports
- 1
- Media Type Supported
- Twisted Pair Optical Fiber
