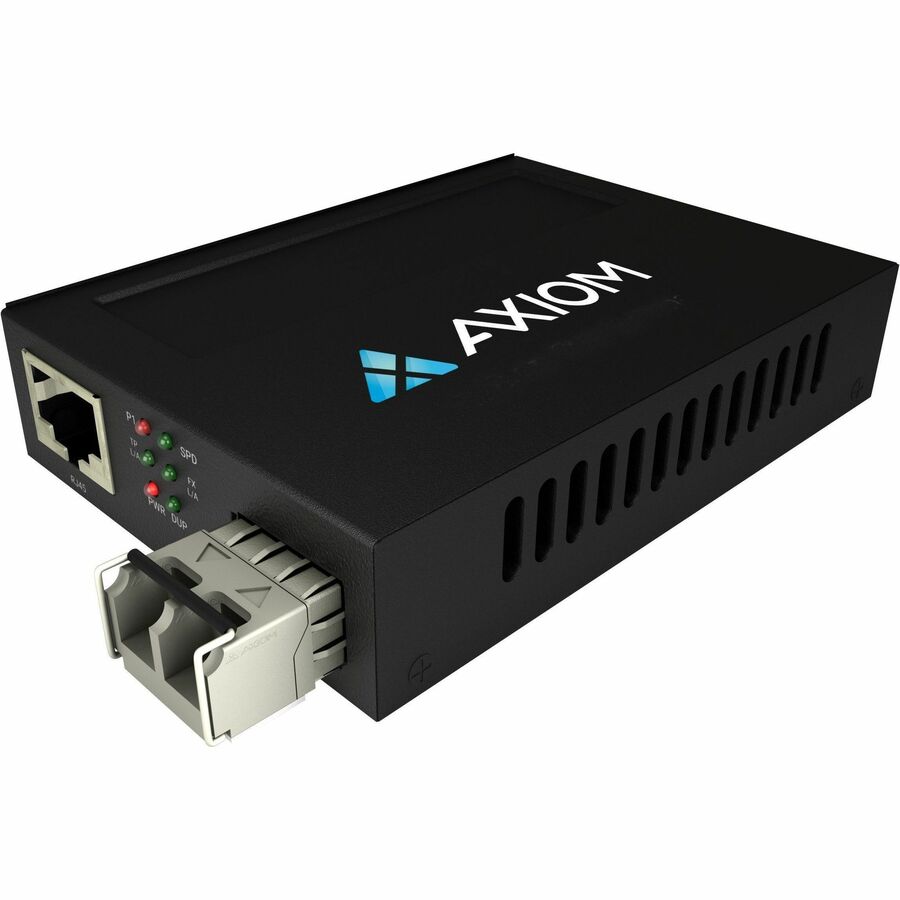

Axiom 1000BASE-T to 1000BASE-LX POE Media Converter
Manufacturer: Axiom Memory Solutions
Mfr. Part: MCP32-F1-S3L10-AX
Axiom 1Gbs POE RJ45 to 1000BASE-LX Fiber Media Converter - SMF, LC, 10KM, 1310nm
About This Product
Overview
The Axiom POE (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
Quick Specifications
- Product Type
- Transceiver/Media Converter
- Network (RJ-45)
- Yes
- PoE Port Type
- PSE
- Media Type Supported
- Twisted Pair Optical Fiber
- Fiber Mode Supported
- Single-mode
- Fiber Optic Cable Wavelength
- 1310 nm
- Maximum Distance Supported
- 10 km
- Total Number of Expansion Slots
- 1
